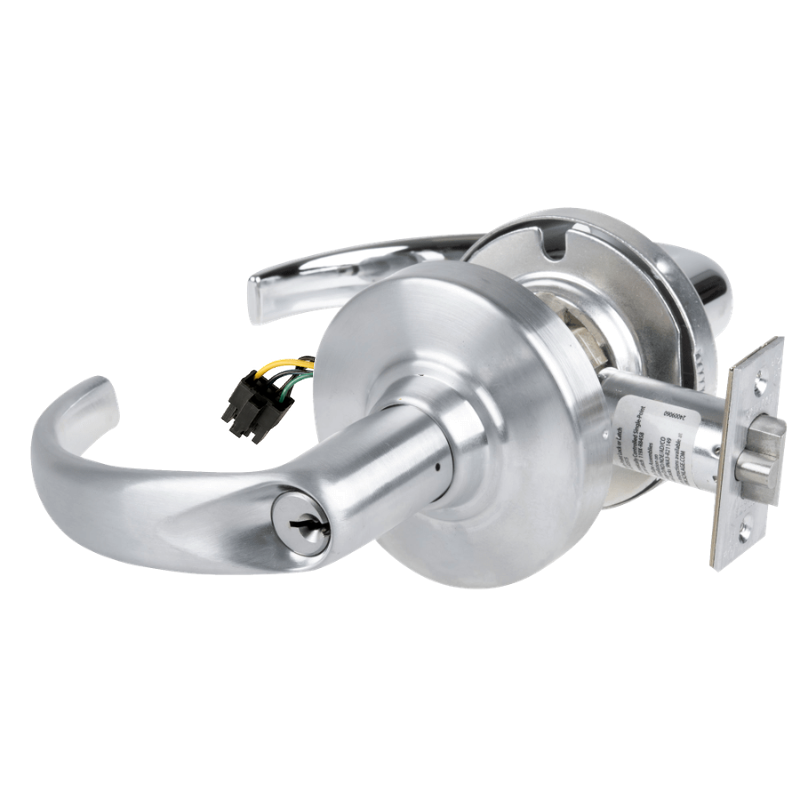

Schlage ND80PD-EU-SPA Cylindrical Electrified Storeroom Lock, Sparta Lever, 12-24V VDC, Fail Secure, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-EU-SPA Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 cylindrical lock built for high-traffic openings that require dependable access control and security. This configuration includes the Sparta lever, 12-24V VDC electrified operation, and fail secure functionality, allowing the outside lever to remain locked during power loss. It is supplied with the Schlage "C" keyway, keyed different, and includes [2] change keys for standard key control. This non handed lock is furnished with a 2-3/4 inch backset and 4-7/8 inch strike, making it a practical choice for commercial openings where durability and electrified storeroom function are required.

Features

• ND80PD-EU electrified storeroom function provides controlled access with a cylindrical lock design suited for commercial applications.
• Sparta lever trim offers a clean lever style compatible with the ND Series platform.
• 12-24V VDC operation supports low-voltage electrified locking applications.
• Fail secure operation keeps the outside lever locked when power is removed.
• Schlage "C" keyway is included for standard Schlage keying compatibility.
• Keyed different configuration provides a unique key combination for the lock.
• [2] change keys are included with the lock.
• 2-3/4 inch backset is furnished for door preparation compatibility.
• 4-7/8 inch strike is included for frame installation.
• Grade 1 construction meets heavy-duty commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed for openings that need remote access control while maintaining secure locking on the outside lever. In fail secure mode, the outside lever remains locked when power is lost, while authorized electrical activation permits lever operation as intended for controlled entry applications.

• Outside lever is locked by outside spring cage mechanism until unlocked by key or by rotating inside lever.
• Inside lever always free for immediate egress.
• Turning key in outside lever unlocks outside lever until key is removed.
• Push button on inside lever unlocks outside lever until it is manually relocked by key from outside or by rotating inside lever.
• Electrically unlocks outside lever. Inside lever always free for immediate egress.

Included Components

This configuration includes the lockset with Sparta lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, 2-3/4 inch backset, and a 4-7/8 inch strike.
