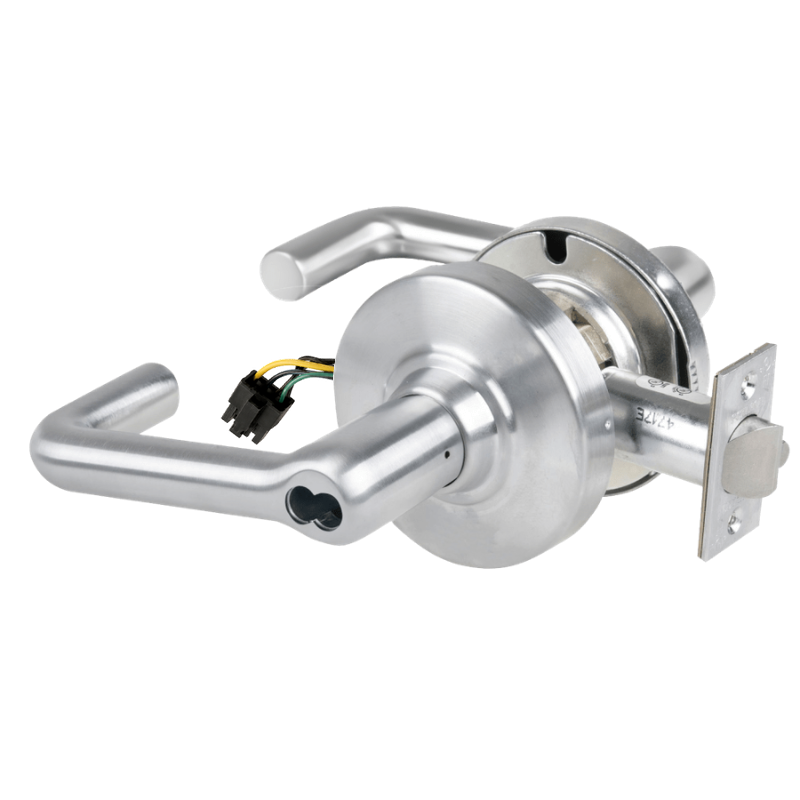

Schlage ND80JD-EU-TLR Cylindrical Electrified Storeroom Lock, Tubular Lever, 12-24V VDC, Fail Secure, Schlage FSIC Full Sized Interchangeable Core, Less Core, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80JD-EU-TLR Cylindrical Electrified Storeroom Lock is a heavy-duty Grade 1 lock built for secure commercial openings that require electric access control and dependable mechanical performance. This configuration features a tubular lever design, 12-24V VDC operation, and fail secure functionality for controlled entry. It is prepared for a Schlage FSIC full sized interchangeable core and is supplied less core for keying flexibility. The lock includes a 2-3/4 inch backset and 4-7/8 inch strike, and its non handed design helps simplify installation across a wide range of door applications.

Features

• ND80JD-EU-TLR is an electrified cylindrical storeroom lock designed for commercial access control applications.
• The tubular lever trim provides a familiar lever-operated design suited for institutional and commercial doors.
• 12-24V VDC operation supports low-voltage electrified locking setups.
• Fail secure function keeps the outside lever locked during loss of power while allowing authorized electrical release.
• This lock is prepared for a Schlage FSIC full sized interchangeable core for flexible key system management.
• The lock is supplied less core so the interchangeable core can be specified separately.
• A 2-3/4 inch backset is included for standard door preparation compatibility.
• The 4-7/8 inch strike is included for proper frame engagement.
• Grade 1 construction meets high-use commercial durability requirements.
• The non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This electrified storeroom function is designed so the outside lever remains locked and requires electrical control for access, while the inside lever allows free egress at all times. In fail secure mode, the lock stays secure on the exterior side if power is interrupted, making it a practical choice for controlled openings where security during power loss is required.

• Fail secure - locked when not energized.
• Inside lever always free for immediate egress.
• Outside lever is electrically unlocked by remote switch or access control device.

Included Components

This Schlage ND80JD-EU-TLR lock is supplied less core and is prepared to accept a Schlage FSIC full sized interchangeable core. The configuration includes the 2-3/4 inch backset latch and 4-7/8 inch strike specified in the title.
