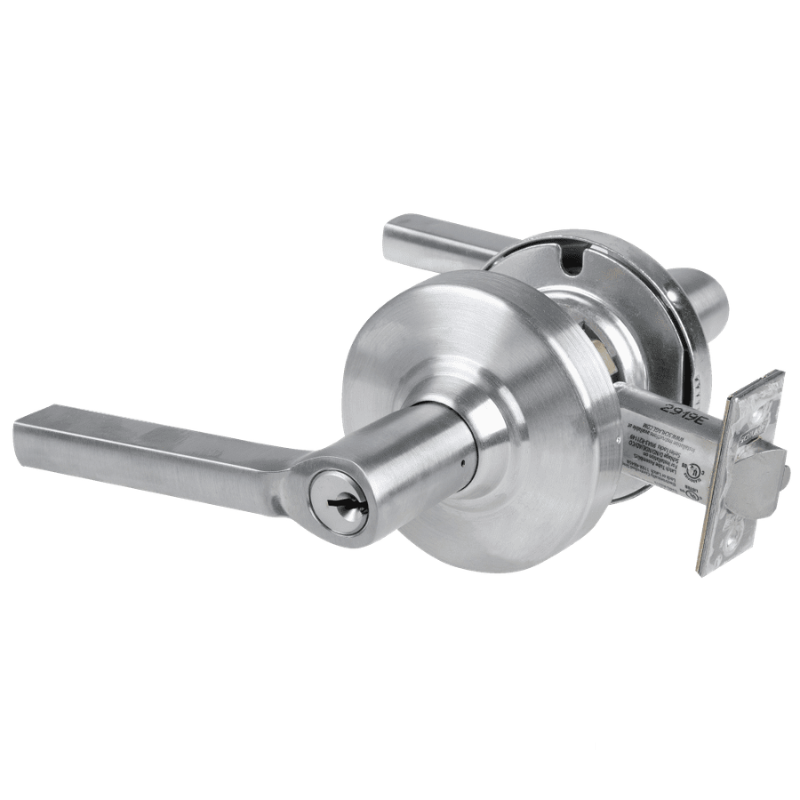

Schlage ND80PD-LAT Cylindrical Storeroom Lock, Latitude Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-LAT Cylindrical Storeroom Lock with Latitude Lever is a heavy-duty Grade 1 cylindrical lock built for demanding commercial openings. This configuration includes the Schlage "C" keyway, keyed different operation, and [2] change keys for secure key control right out of the box. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, making it suitable for standard commercial door prep where durability and dependable access control matter. The ND80PD-LAT is a non handed lock, helping simplify installation while delivering the proven performance of the Schlage ND Series.

Features

• ND80PD-LAT cylindrical storeroom lock is designed for commercial applications that require secure outside access control.
• Latitude lever trim provides a modern straight lever design within the Schlage ND Series platform.
• Schlage "C" keyway is included for conventional keying compatibility.
• Keyed different configuration means each lock is furnished with its own unique key combination.
• [2] change keys are included with the lock.
• 2-3/4 inch backset is supplied for the latch preparation.
• 4-7/8 inch strike is included for frame installation.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This storeroom function keeps the outside lever rigid at all times and requires a key for entry from the outside, while the inside lever always allows free egress. It is a common choice for utility rooms, stock rooms, and other spaces that need controlled entry without restricting exit.

• Outside lever rigid.
• Entrance by key only.
• Inside lever always free for immediate egress.

Included Components

This lock is supplied with the Latitude lever trim, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike. Its non handed design helps reduce stocking complexity and speeds installation in the field.
