Description

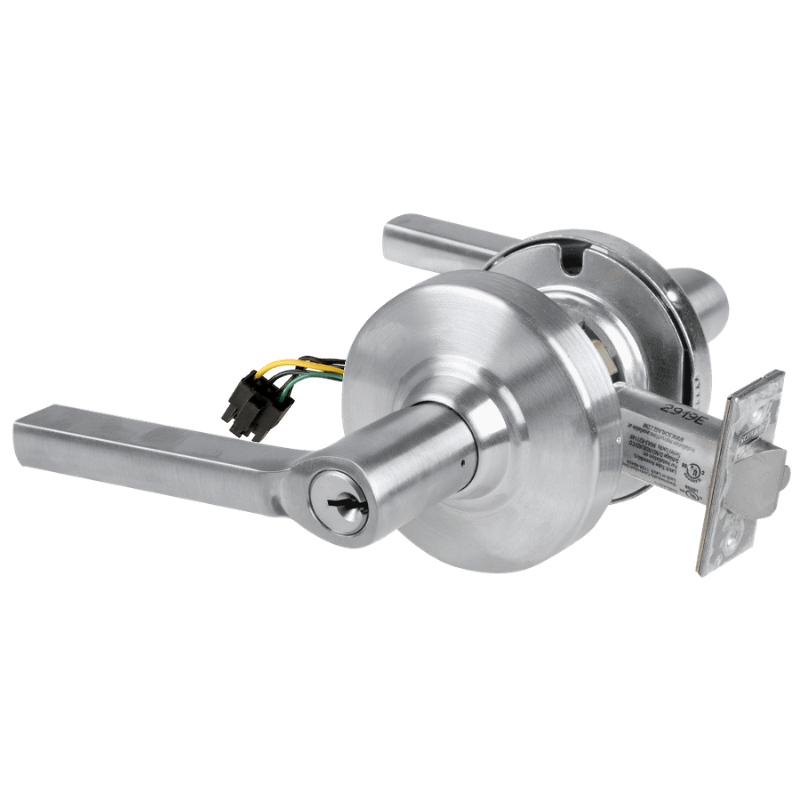

Schlage ND80PD-LAT-RX Cylindrical Storeroom Lock, Latitude Lever, Request to Exit, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80PD-LAT-RX Cylindrical Storeroom Lock with Latitude Lever is a heavy-duty Grade 1 cylindrical lock built for secure commercial openings that require request to exit capability. This non handed lockset features the Schlage "C" keyway, keyed different operation, and includes [2] change keys for convenient key control. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for proper fit on compatible doors and frames. Designed as part of the Schlage ND Series, the ND80PD-LAT-RX combines storeroom security, dependable mechanical performance, and commercial-grade durability in one proven lock solution.
Features
- ND80PD-LAT-RX function provides a cylindrical storeroom lock with request to exit capability for commercial door applications.
- Latitude lever trim offers a modern lever design within the Schlage ND Series platform.
- Schlage "C" keyway is included for standard Schlage keying compatibility.
- Keyed different configuration provides an individual key combination for the lock.
- [2] change keys are included with the lock.
- 2-3/4 inch backset supports installation on doors requiring the longer commercial backset.
- 4-7/8 inch strike is included for compatible frame preparation.
- Grade 1 construction meets high-use commercial performance requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80PD-LAT-RX storeroom function is designed for doors that must remain secure from the outside while allowing free egress from the inside, with added request to exit capability. This function is commonly used on controlled openings where access control or monitoring is required alongside the durability of a mechanical Grade 1 cylindrical lock.
- Outside lever always rigid.
- Entrance by key only.
- Inside lever always unlocked.
- Inside lever retracts latch.
- Auxiliary latch deadlocks latch bolt when door is closed.
Included Components
This lock is supplied with the Latitude lever, Schlage "C" keyway cylinder keyed different, [2] change keys, a 2-3/4 inch backset latch, and a 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80PD-LAT-RX |
| Product Type | Cylindrical Storeroom Lock |
| Lever Design | Latitude Lever |
| Function | Storeroom with Request to Exit |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | 2 Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Handing | Non Handed |
| Grade | Grade 1 |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3 hour fire door |
| BAA Qualified | Yes |
| Origin | Made in USA of domestic and imported materials |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
| SKU | ND-80PD-LAT-RX |
Technical Specifications
| ANSI Function Number | F86 |
|---|---|
| Backset | 2-3/4 in |
| Strike Size | 4-7/8 in |
| Door Thickness | 1-3/8 in to 2-1/8 in |
| Latch Throw | 1/2 in |
| Deadlatch | Yes |
| Handing | Non handed |
| Cycle Test | 3,100,000 cycles |
| Fire Rating | 3 hour |
| Cylinder Type | Conventional cylinder |
| Keyway | Schlage C |
| Request to Exit | RX switch monitors inside lever operation |
| Latch Front | 1-1/8 in x 2-1/4 in |
| Strike Type | ANSI strike |
| Bolt Projection | 1/2 in |
