Description

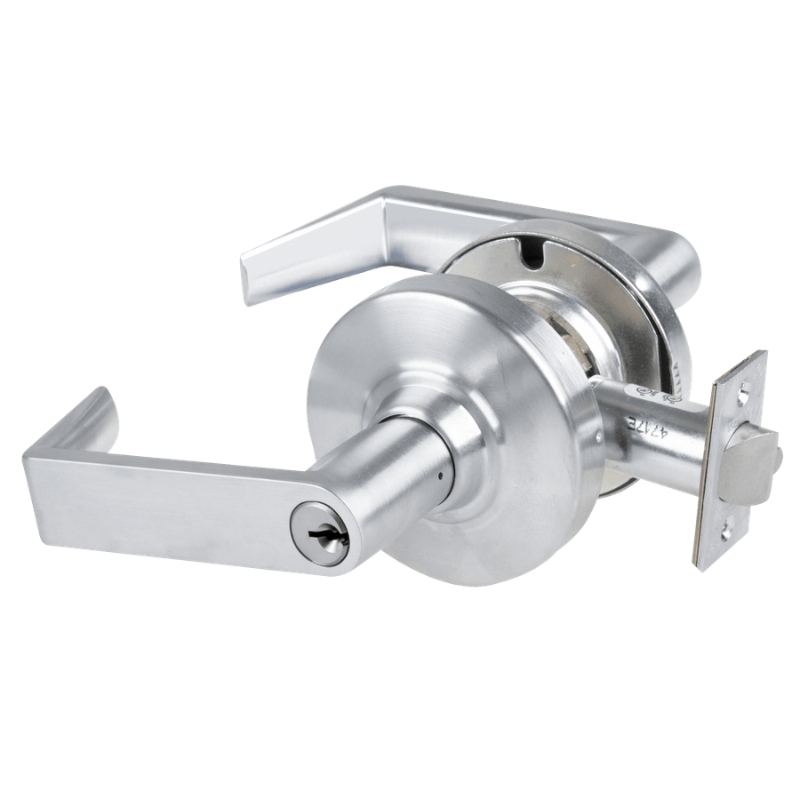

Schlage ND80PD-RHO Cylindrical Storeroom Lock, Rhodes Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80PD-RHO Cylindrical Storeroom Lock with Rhodes Lever is a heavy-duty Grade 1 lock built for high-traffic commercial openings that need dependable security and long service life. This ND80PD-RHO configuration features the Rhodes lever design, Schlage "C" keyway, keyed different operation, and includes [2] change keys for immediate use. It is supplied with a 2-3/4 inch backset and a 4-7/8 inch strike, making it a practical choice for standard commercial door prep. As a non handed cylindrical storeroom lock in the Schlage ND Series, it is designed for flexible installation and reliable performance.
Features
ND80PD-RHO is a cylindrical storeroom lock designed for commercial applications requiring secure outside access control.
The Rhodes lever trim provides a clean, modern lever design within the Schlage ND Series.
The Schlage "C" keyway is provided for keying compatibility within Schlage cylinder systems.
This lock is keyed different, so each lock operates with its own unique key combination.
[2] change keys are included for out-of-the-box operation.
A 2-3/4 inch backset is supplied for standard commercial door preparation.
A 4-7/8 inch strike is included for frame compatibility.
Grade 1 construction meets the highest ANSI/BHMA grading level for cylindrical locks.
The non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The storeroom function keeps the outside lever rigid at all times and requires a key for entry from the outside, while the inside lever always allows free egress. This makes the ND80PD-RHO a strong choice for rooms that must remain locked from the corridor side without restricting exit.
Outside lever always rigid.
Entrance by key only.
Inside lever always free for immediate egress.
Included Components
This Schlage ND80PD-RHO lock is supplied with the Rhodes lever trim, Schlage "C" keyway cylinder, keyed different keying, [2] change keys, a 2-3/4 inch backset, and a 4-7/8 inch strike.
Product Specifications
Manufacturer |
Schlage |
Series |
ND Series |
Model |
ND80PD-RHO |
Lock Type |
Cylindrical Lock |
Function |
Storeroom |
Lever Design |
Rhodes Lever |
Keyway |
Schlage "C" |
Keying |
Keyed Different |
Included Keys |
2 Change Keys |
Handing |
Non Handed |
Grade |
ANSI/BHMA Grade 1 |
ANSI Number |
F86 |
UL Listing Type |
UL listed for 3-hour fire door applications |
Unit of Measure |
Each |
Origin |
Made in USA of domestic and imported materials |
BAA Qualified |
Yes |
Limited Warranty |
10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
Backset |
2-3/4 in. |
Strike |
4-7/8 in. ANSI strike |
Latch Front |
1-1/8 in. x 2-1/4 in. |
Door Thickness |
1-3/8 in. to 2-1/8 in. standard |
Crossbore |
2-1/8 in. |
Edge Bore |
1 in. |
Latch Throw |
1/2 in. |
Rose Diameter |
3-7/16 in. |
Lever Projection |
2-29/32 in. |
Lever Length |
4-7/16 in. |
Cylinder Type |
6-pin conventional cylinder |
Handing |
Non handed |
Fire Rating |
3 hours |
Cycle Testing |
3,100,000 cycles |
Strike Screw Size |
#12-24 x 1 in. combo screws |
