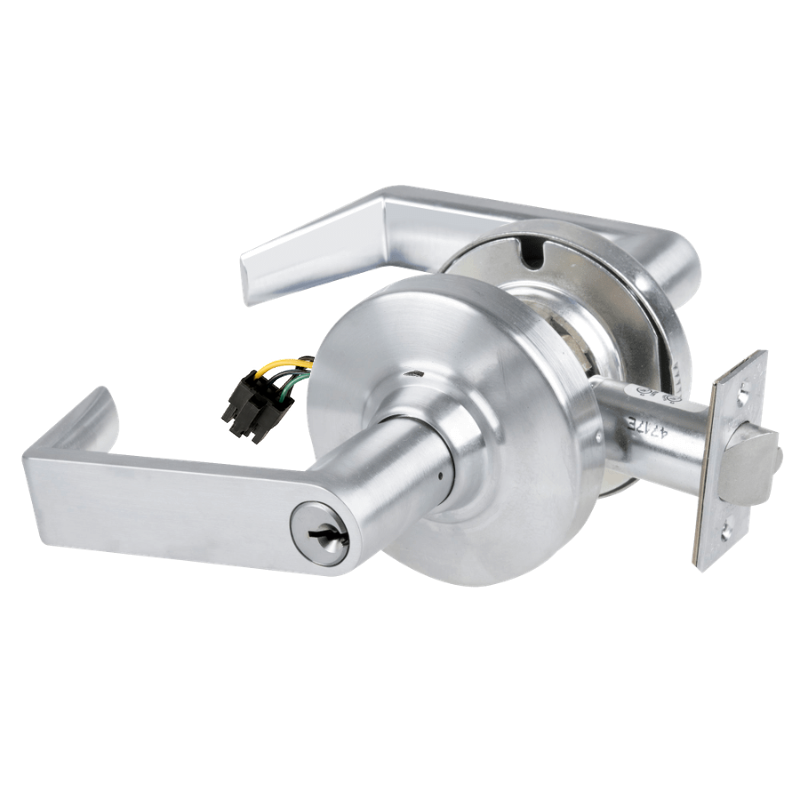

Schlage ND80PD-RHO-RX Cylindrical Storeroom Lock, Rhodes Lever, Request to Exit, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-RHO-RX Cylindrical Storeroom Lock combines heavy-duty Grade 1 performance with the clean look of the Rhodes lever for demanding commercial openings. This non handed lock features the ND80PD-RHO-RX storeroom function with request to exit capability, a Schlage "C" keyway, keyed different cylinder, and [2] change keys included. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door prep. Built within the Schlage ND Series platform, this cylindrical lock is designed for strength, consistent operation, and dependable security in schools, offices, healthcare facilities, and other high-use applications.

Features

• ND80PD-RHO-RX storeroom function provides Schlage ND Series cylindrical lock performance for secure commercial openings.
• Rhodes lever design offers a modern lever style within the heavy-duty ND Series trim options.
• Request to Exit monitoring adds exit signaling capability for access control and egress applications.
• Schlage "C" keyway is supplied for standard Schlage keying compatibility.
• Keyed different configuration provides an individual key combination for the cylinder.
• [2] change keys are included with the lock.
• 2-3/4 inch backset supports common commercial door preparations.
• 4-7/8 inch strike is included for compatible frame preparation.
• Grade 1 construction meets high-use commercial performance requirements.
• Non handed design allows installation on either right-hand or left-hand doors.

Functional Details

This storeroom lock function keeps the outside lever rigid at all times, while the inside lever remains free for immediate egress. The request to exit feature adds monitoring support for controlled openings by signaling when the inside lever is used. This makes the lock well suited for secured commercial doorways that require both reliable access control and safe exit operation.

• Outside lever fixed.
• Entrance by key only.
• Inside lever always unlocked.
• RX switch available.

Included Components

This configuration includes the Schlage "C" keyed different cylinder, [2] change keys, and a 4-7/8 inch strike. It is also prepared with a 2-3/4 inch backset and supplied in a non handed cylindrical lock design.
