Description

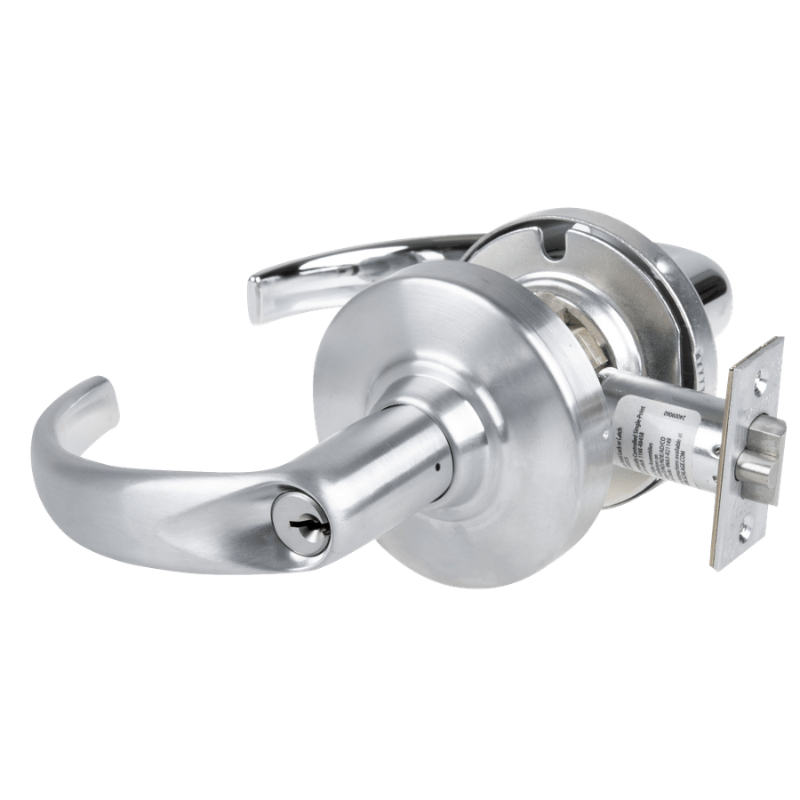

Schlage ND80PD-SPA Cylindrical Storeroom Lock, Sparta Lever, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80PD-SPA Cylindrical Storeroom Lock with Sparta lever is a heavy-duty Grade 1 lockset built for dependable security in commercial openings. This ND80PD function features the Schlage "C" keyway, keyed different operation, and includes [2] change keys for key control right out of the box. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door prep compatibility. Designed as a non handed cylindrical lock, it offers flexible installation and reliable storeroom performance backed by the durability and strength expected from the Schlage ND Series.
Features
- ND80PD cylindrical storeroom lock function is designed for controlled entry in commercial applications.
- Sparta lever trim provides a clean, practical lever design for everyday use.
- Schlage "C" keyway supports standard Schlage keying requirements.
- Keyed different configuration means each lock operates with its own unique key.
- Includes [2] change keys for immediate operation after installation.
- Built with a 2-3/4 inch backset for compatibility with deeper commercial door preparations.
- Supplied with a 4-7/8 inch strike for proper frame fitment.
- Grade 1 construction meets high-performance commercial durability requirements.
- Non handed design allows installation on either right-hand or left-hand doors.
- Cylindrical chassis construction supports strength, serviceability, and long cycle life.
Functional Details
The ND80PD storeroom function keeps the outside lever rigid at all times and requires a key for outside entry, while the inside lever remains free for immediate egress. This makes it a practical choice for utility rooms, stock rooms, and other spaces that need secure access control without restricting exit.
- Outside lever rigid.
- Entrance by key only.
- Inside lever always unlocked.
Included Components
This lock is supplied keyed different with a Schlage "C" keyway and includes [2] change keys. It is also configured with a 2-3/4 inch backset and a 4-7/8 inch strike as specified in the product title.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80PD-SPA |
| Product Type | Cylindrical Storeroom Lock |
| Lever Design | Sparta Lever |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | [2] Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | ANSI/BHMA Grade 1 |
| Handing | Non Handed |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| Origin | Made in USA of domestic and imported materials |
| BAA Qualified | Yes |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| Lock Function | ND80PD Storeroom |
|---|---|
| ANSI Function Number | F86 |
| Grade | Grade 1 |
| Cycle Test | 3,100,000 cycles |
| Door Thickness | 1-3/8 Inch to 2 Inch |
| Backset | 2-3/4 Inch |
| Strike Size | 4-7/8 Inch |
| Crossbore | 2-1/8 Inch |
| Edge Bore | 1 Inch |
| Latch Front | 1-1/8 Inch x 2-1/4 Inch |
| Door Handing | Non Handed |
| Lever Style | Sparta |
| Keyway | Schlage "C" |
| Fire Rating | 3 Hour |
| Latch Throw | 1/2 Inch |
