Description

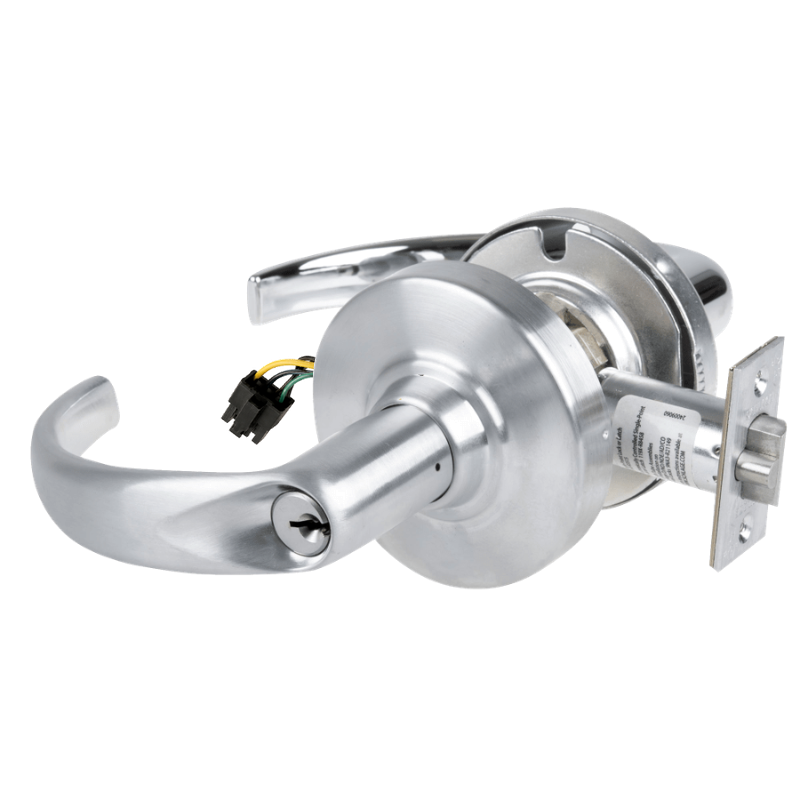

Schlage ND80PD-SPA-RX Cylindrical Storeroom Lock, Sparta Lever, Request to Exit, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND80PD-SPA-RX Cylindrical Storeroom Lock combines heavy-duty Grade 1 performance with the clean look of the Sparta lever for demanding commercial openings. This non handed lock features the ND80PD storeroom function with Request to Exit capability, a Schlage "C" keyway, keyed different operation, and includes [2] change keys for key management. It is configured with a 2-3/4 inch backset and a 4-7/8 inch strike for standard commercial door prep compatibility. Built as part of the Schlage ND Series, this cylindrical lock is designed for strength, reliability, and consistent operation in high-traffic applications.
Features
- ND80PD storeroom function provides secure outside access control for commercial openings.
- Integrated Request to Exit feature supports egress-related signaling applications.
- Sparta lever design offers a durable, commercial-grade lever style.
- Schlage "C" keyway is included for standard Schlage cylinder compatibility.
- Keyed different configuration provides an individual key combination for the lock.
- Supplied with [2] change keys for day-to-day keyed operation.
- 2-3/4 inch backset fits common commercial door preparations.
- 4-7/8 inch strike is included for proper frame and latch alignment.
- Grade 1 construction is built for high-use commercial environments.
- Non handed design allows installation on either right-hand or left-hand doors.
Functional Details
The ND80PD storeroom function keeps the outside lever rigid at all times, while entrance is controlled by key from the outside and free egress is maintained from the inside. The RX Request to Exit option adds monitoring capability by signaling when the inside lever is depressed.
- Outside lever always rigid.
- Entrance by key only.
- Inside lever always free for immediate egress.
- RX - request-to-exit switch monitors inside lever rotation.
Included Components
This configuration includes the Schlage "C" keyway cylinder, keyed different setup, [2] change keys, a 2-3/4 inch backset latch arrangement, and a 4-7/8 inch strike.
Product Specifications
| Manufacturer | Schlage |
|---|---|
| Series | ND Series |
| Model | ND80PD-SPA-RX |
| Product Type | Cylindrical Lock |
| Function | Storeroom |
| Lever Design | Sparta Lever |
| Request to Exit | Yes, RX |
| Keyway | Schlage "C" |
| Keying | Keyed Different |
| Included Keys | [2] Change Keys |
| Backset | 2-3/4 Inch |
| Strike | 4-7/8 Inch Strike |
| Grade | Grade 1 |
| Handing | Non Handed |
| ANSI Number | F86 |
| UL Listing Type | UL listed for 3-hour fire door |
| BAA Qualified | Yes |
| Origin | Made in USA |
| Unit of Measure | Each |
| Limited Warranty | 10 Year Mechanical Warranty, 3 Year Electro Mechanical Warranty |
Technical Specifications
| ANSI Function Number | F86 |
|---|---|
| ANSI/BHMA Grade | Grade 1 |
| Backset | 2-3/4 in. |
| Strike Height | 4-7/8 in. |
| Door Thickness Range | 1-3/8 in. to 2-1/8 in. |
| Latch Front | 1-1/8 in. x 2-1/4 in. |
| Strike Size | 1-1/4 in. x 4-7/8 in. |
| Crossbore Diameter | 2-1/8 in. |
| Edge Bore Diameter | 1 in. |
| Cylinder Type | 6-pin conventional cylinder, Schlage "C" keyway |
| Handing | Non handed |
| Fire Rating | 3 hours |
| Cycle Testing | 3,100,000 cycles |
| Latch Throw | 1/2 in. |
| Request to Exit Switch | Monitors inside lever rotation |
