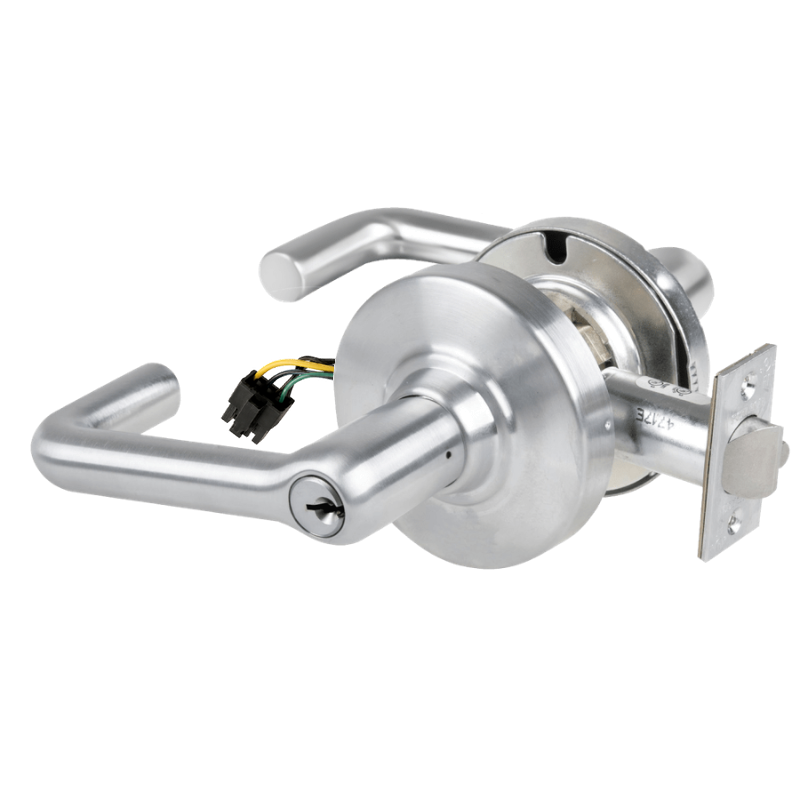

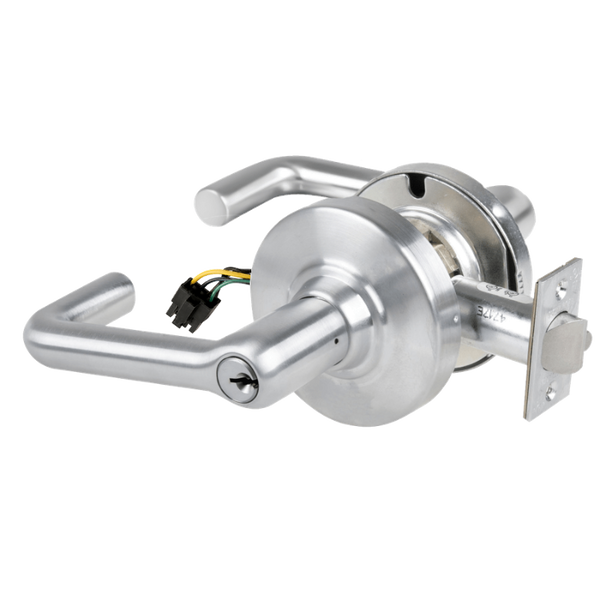

Schlage ND80PD-TLR-RX Cylindrical Storeroom Lock, Tubular Lever, Request to Exit, Schlage "C", Keyed Different, [2] Change Keys, 2-3/4 Inch Backset, 4-7/8 Inch Strike, Grade 1, Non Handed

The Schlage ND80PD-TLR-RX is a Grade 1 cylindrical storeroom lock built for the demanding conditions of commercial and institutional openings. Part of Schlage's heavy-duty ND Series, it features the Tubular (TLR) lever design paired with a Request to Exit (RX) switch that signals when the inside lever is operated, making it ideal for access control and monitored openings. The lock ships with the Schlage "C" keyway, keyed different, and includes two change keys. With a 2-3/4 inch backset, a 4-7/8 inch strike, and a non-handed design, this lockset installs on virtually any standard commercial door for reliable, long-term security.

Features

• Grade 1 certified for the highest level of commercial durability and performance.
• Storeroom function keeps the outside lever locked at all times while the inside lever always allows free egress.
• Integrated Request to Exit (RX) switch monitors inside lever operation for access control integration.
• Tubular (TLR) lever design offers a clean, ergonomic feel and ADA-compliant operation.
• Schlage "C" keyway, keyed different, with two change keys included.
• Non-handed construction simplifies installation and inventory.
• 2-3/4 inch backset with a 4-7/8 inch strike for standard commercial door prep.

Functional Details

The storeroom function provides a secure entry point where the outside lever remains locked and requires a key for entry, while the inside lever always retracts the latch for free, immediate egress. The Request to Exit switch actuates whenever the inside lever is turned, sending a signal to connected access control or alarm systems.

• Outside lever is fixed. Entrance by key only.
• Inside lever always active for immediate egress.
• Latchbolt retracted by key outside or by inside lever.
