Description

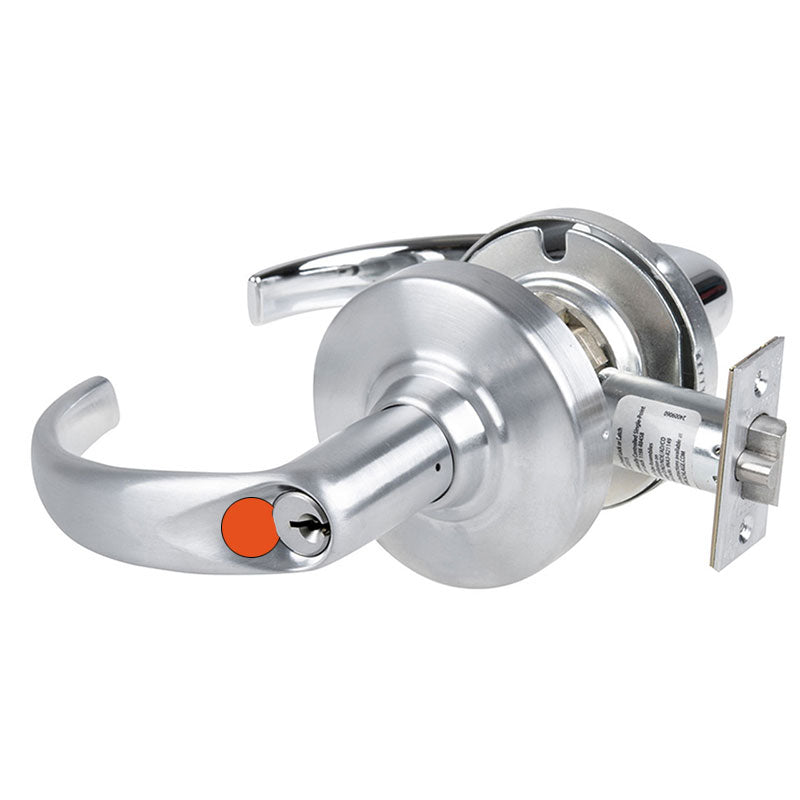

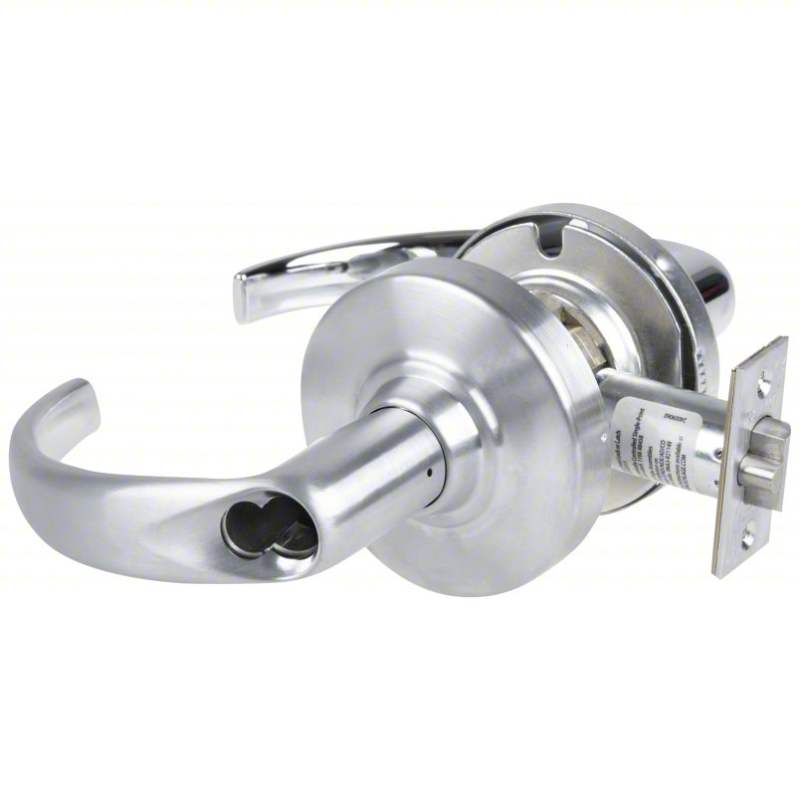

The Schlage ND80TD-SPA-626 is a Storeroom Lock, with a Sparta Lever, has Schlage FSIC Prep with Construction Core, is Grade 1, and comes in Satin Chrome Finish.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
Product Specs
| Vendor | Allegion |
| Manufacturer | Schlage |
| SKU | ND80BDEU SPA 626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | Mexico |
| Application | Storeroom Lever |
| Base Material | Brass or Bronze |
| BAA Qualified | Yes |
| Limited Warranty | 1 Year |
| Finish | 626/US26D |
| Finish Description | Satin Chrome |
Technical Specs
| Function | 80EU-Fail Secure |
| Lever/Knob Design | SPA-Sparta |
| Rose/Escutcheon Design | 3-7/16 In. Diameter |
| Cylinder Type | SFIC Prep Less Core |
| Door Thickness | 1-3/4" to 2" |
| Latch Number | 14-047 |
| Latch Type | Guarded Latch |
| Latch Backset Dim | 2-3/4" |
| Lock Face Size | 2-1/4" X 1-1/8" |
| Strike Number | 10-025 |
| Strike Type | ASA |
| Strike Height | 4-7/8" |
| Strike Width | 1-1/4" |
| Dust Box | None |
| Screws | Combination |
| Power | Hard Wired |
| Operating Voltage | 12VDC/24VDC |
| Amp Draw | 0.23 |
| Switch Type | None |
| Product Type | Electric Cylindrical Lock |
