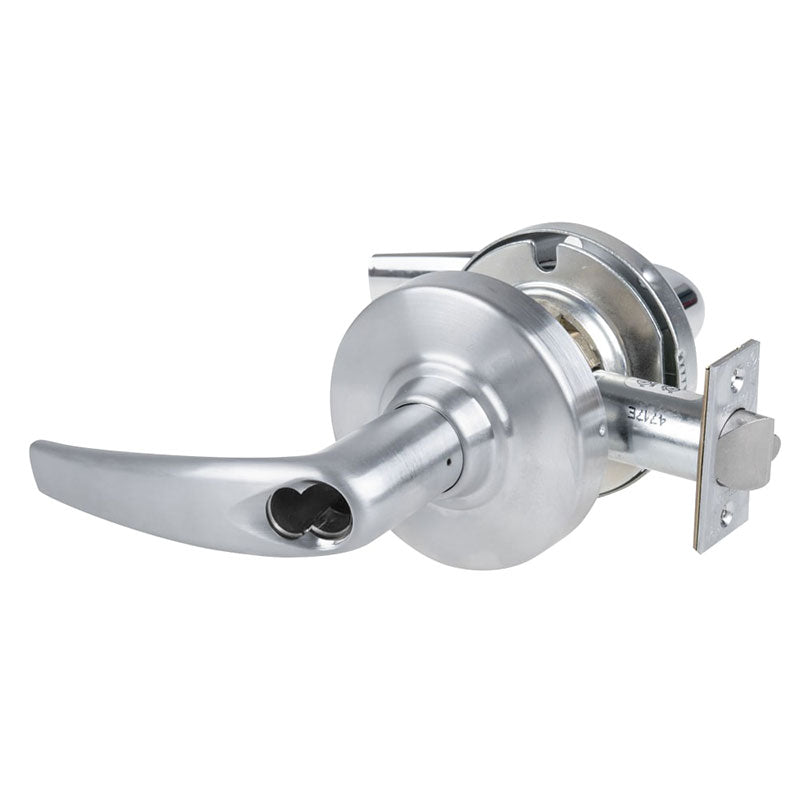

Schlage ND82JD-ATH-626 Institution Lock, FSIC Less Core, ATH Lever, Satin Chrome

  • SKU: ND82JDATH626
Schlage ND82JD-ATH-626 Institution Lock
Schlage ND82JD-ATH-626 Institution Lock
All SCHLAGE Products

Schlage ND82JD-ATH-626 Institution Lock, FSIC Less Core, ATH Lever, Satin Chrome

  • SKU: ND82JDATH626
$832.00/ea
In Stock
In Stock
Choose Your Product Options:
Recommended
Fence Screen Height *
Standard 3′ ft. Fence Screen Colors *
Black FenceScreen Size *
Beige FenceScreen Size *
Grey FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 8′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 4′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 5′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 6′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *

Technical Specs

Function 82 Institution Lock
Function Family Institutional
ANSI Function F87 - Asylum
Lever/Knob Design ATH Athens Lever
Lever/Knob Design Family Curved Lever
Rose/Escutcheon Design 3-7/16" Rose Diameter
Rose/Escutcheon Dimensions 3-7/16"
Cylinder Type Schlage FSIC Prep Less Core
Num Pins 6
Handing Non-handed
Door Thickness 1-5/8 In. to 2-1/8 In.
Std. Latch Number 13-247
Std. Latch Type Deadlatch
Std. Latch Backset Dim 2-3/4 In.
Latch Bore Diameter 1 In.
Lock Face Size 1-1/8 In. x 2-1/4 In.
Bolt Projection 1/2 In.
Bore Hole Diameter 2-1/8 In.
Std. Strike Number 10-025
Std. Strike Type ANSI Strike
Std. Strike Height 4-7/8 In.
Std. Strike Width 1-1/4 In.
Screws Wood/Machine Screws
Product Type Cylindrical Lock


Product Specs

Manufacturer Schlage
SKU ND82JD ATH 626
Grade Grade 1
Installation Commercial
Origin Mexico
Unit of Measure Each
UL Listing Type UL/cUL Listed
ANSI Number ANSI A156.2 Series 4000, Grade 1
BAA Qualified Yes
Limited Warranty 10 Years
Fire Rated 3 Hours {A}
ADA Compliance Yes
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver


The Schlage ND82JD-ATH-626 is a Cylindrical Institution Lock, with an Athens Lever, is prepped for a Schlage FSIC Large Format Interchangeable Core, is Sold Less Core, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in 626 Satin Chrome Finish.

Institution Function - Both levers are fixed. Entrance by key in either lever.
Schlage ND82 Function Chart

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

  • Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
  • 31 mechanical functions
  • Nine lever designs, two rose designs
  • 10 available finishes
  • Supports standard, SFIC and FSIC cylinder formats
  • Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
  • Support for 10 non-Schlage cores
