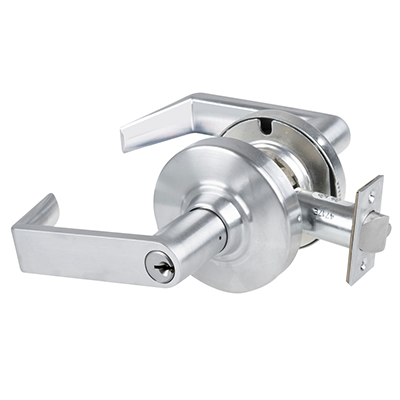

The Schlage ND85PD-RHO-626 is a Cylindrical Faculty Restroom Lock, with an Rhodes Lever, has a 6-pin Schlage C Keyway, is Keyed Different, comes with 2 Keys, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in 626 Satin Chrome Finish.

Faculty Restroom Function- The outside lever is fixed. Entrance by key only. The Push-button in the inside lever activates the visual occupancy indicator, allowing only the emergency master key to operate. Turn inside lever or close door to release visual occupancy indicator. Rotation of the inside spinner-button provides a lock-out feature by keeping the indicator thrown.

ND Mechanical Overview

The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.

• Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
• 31 mechanical functions
• Nine lever designs, two rose designs
• 10 available finishes
• Supports standard, SFIC and FSIC cylinder formats
• Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
• Support for 10 non-Schlage cores
