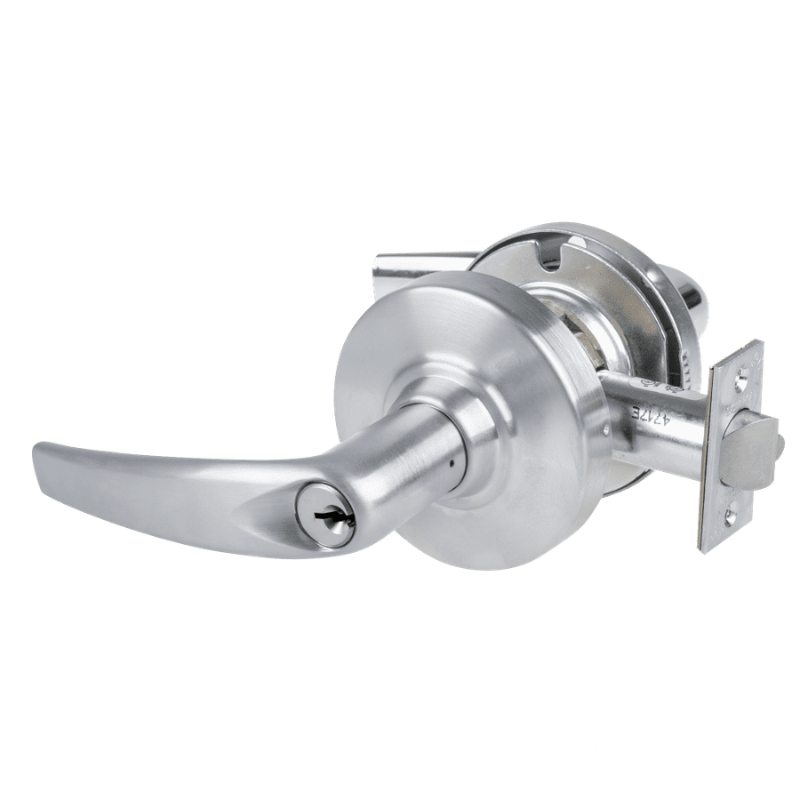

Schlage ND91-PD-ATH Vandlgard Entrance/Office Cylindrical Lock, Athens Lever, Schlage C Keyway Keyed Random, 2 Keys, 2-3/4 Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND91PD-ATH is a Grade 1 cylindrical entrance/office lock built for demanding commercial openings where durability and security are priorities. Part of the heavy-duty ND Series, this lock features Vandlgard technology that lets the outside lever rotate freely when locked, protecting the internal mechanism from forced entry and vandalism. It comes with the Athens (ATH) lever, a Schlage "C" keyway keyed random, and includes two keys. The non-handed design simplifies installation on either left- or right-hand doors, while the standard 2-3/4-inch backset and 4-7/8-inch strike suit most standard prep. It's a dependable choice for offices, schools, and other high-traffic environments.
Features
- Vandlgard function allows the outside lever to rotate freely when locked, preventing damage from forced entry.
- Grade 1 certified for the highest level of commercial durability and performance.
- Athens (ATH) lever design offers a clean, contemporary look.
- Schlage "C" keyway, keyed random, supplied with two keys.
- Non-handed construction fits both left- and right-hand doors.
- Standard 2-3/4-inch backset with a 4-7/8-inch strike.
Functional Details
The ND91PD operates as an entrance/office lock, giving users key control from the outside and thumbturn or pushbutton operation from the inside, with the Vandlgard feature safeguarding the lock during attempted forced entry.
- Latchbolt operated by lever from either side except when outside lever is locked by push button.
- Push button locking; turning inside lever or closing door releases button.
- Auxiliary button locks outside lever requiring use of key until button is manually reset.
| Manufacturer | Schlage |
| SKU | ND91PD-ATH |
| Product Line | ND Series Heavy Duty Cylindrical Lock |
| Grade | Grade 1 |
| Function | Vandlgard Entrance/Office |
| Lever Style | Athens (ATH) |
| Handing | Non-Handed |
| Keyway | Schlage "C" |
| Keying | Keyed Random, 2 Keys |
| Origin | USA |
| Unit of Measure | Each |
| ANSI Number | A156.2, Series 4000 |
| Limited Warranty | Yes |
| Backset | 2-3/4 inch (standard) |
| Strike | 4-7/8 inch |
| Latch | 1/2 inch throw |
| Door Thickness Range | 1-3/8 inch to 2 inch standard |
| Bored Hole Diameter | 2-1/8 inch |
| Cross Bore | 1 inch |
| Cylinder | 6-pin, Schlage "C" keyway |
| ANSI Standard | ANSI/BHMA A156.2 |
| Grade Rating | Grade 1 |
| Function Code | ND91PD |
| Lever Type | ATH (Athens) |
