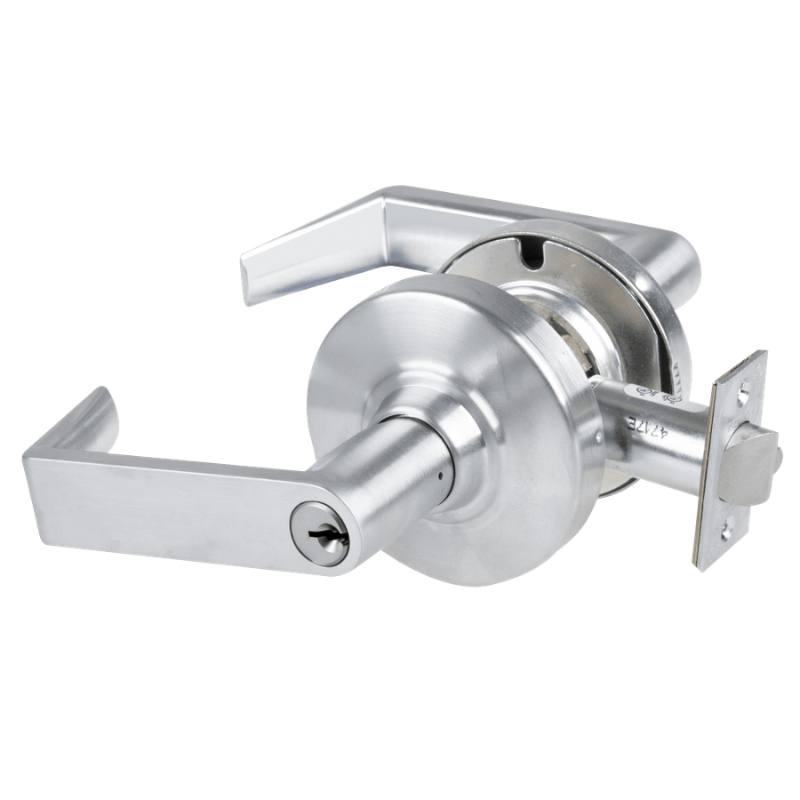

Schlage ND91-PD-RHO Vandlgard Entrance/Office Cylindrical Lock, Rhodes Lever, Schlage C Keyway Keyed Random, 2 Keys, 2-3/4 Backset, 4-7/8 Inch Strike, Grade 1, Non Handed
The Schlage ND91PD-RHO is a heavy-duty Grade 1 cylindrical lock built for high-traffic commercial entrances and offices where durability matters. Featuring Vandlgard technology, the outside lever moves freely when locked to resist damage from forced entry, while the inside lever always allows secure passage. It comes with the classic Rhodes (RHO) lever and Schlage's popular "C" keyway, supplied keyed random with two keys. Designed with a 2-3/4 inch backset and a 4-7/8 inch strike, this non-handed lockset installs on standard commercial door prep and delivers dependable performance year after year in schools, offices, and institutional settings.
Features
- Vandlgard function protects the lock by allowing the outside lever to rotate freely when locked.
- Rhodes (RHO) lever design offers a clean, contemporary appearance.
- Schlage "C" keyway supplied keyed random with two keys included.
- Grade 1 ANSI/BHMA certification for the highest level of commercial durability.
- Non-handed design simplifies stocking and installation.
- Standard 2-3/4 inch backset with a 4-7/8 inch ANSI strike.
Functional Details
The ND91PD Entrance/Office function locks and unlocks the outside lever by key. In the locked state, Vandlgard lets the outside lever rotate freely to prevent vandalism, and the inside lever is always free for immediate egress.
- Latch bolt operated by lever from either side except when outside lever is locked by key.
- Turn/push button locking; rotating inside lever or closing door releases button unless in the shut-out mode.
- When outside lever is locked, latch may be retracted by key in outside lever or by rotating inside lever.
Included Components
Each lockset ships as a complete non-handed unit including the Rhodes levers, cylinder with Schlage "C" keyway, two keys, latch, and 4-7/8 inch strike.
| Manufacturer | Schlage |
|---|---|
| SKU | ND91PD-RHO |
| Series | ND Series |
| Function | Entrance/Office (Vandlgard) |
| Lever Style | Rhodes (RHO) |
| Keyway | Schlage "C", Keyed Random |
| Keys Included | 2 |
| Grade | ANSI/BHMA Grade 1 |
| Origin | USA |
| Unit of Measure | Each |
| Handing | Non-Handed |
| Limited Warranty | Yes |
| Backset | 2-3/4 in (standard) |
|---|---|
| Strike | 4-7/8 in ANSI strike |
| Latch Bolt Throw | 1/2 in |
| Door Thickness | 1-3/8 in to 2 in |
| Chassis Type | Cylindrical |
| Cylinder | 6-pin, conventional |
| Lever Rotation | Vandlgard clutch (free-spinning when locked) |
| ANSI Function | F82 (Entrance/Office) |
| Bore Diameter | 2-1/8 in |
| ANSI/BHMA Standard | A156.2, Series 4000 |
