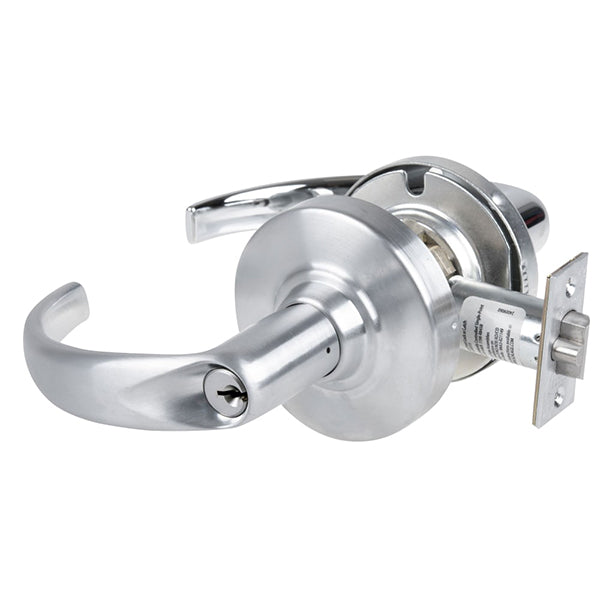

The Schlage ND96PD-SPA is a Cylindrical Storeroom Lock, with a Sparta Lever, is available in Schlage C Keyway, is Keyed Different, comes with 2 Keys, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in multiple finishes. Storeroom Function -Outside lever is always disengaged. Entrance by key only. Vandlgard allows outside spindle to disengage from the latch when when locked. Inside lever always free for immediate egress.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
31 mechanical functions
Nine lever designs, two rose designs
10 available finishes
Supports standard, SFIC and FSIC cylinder formats
Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
