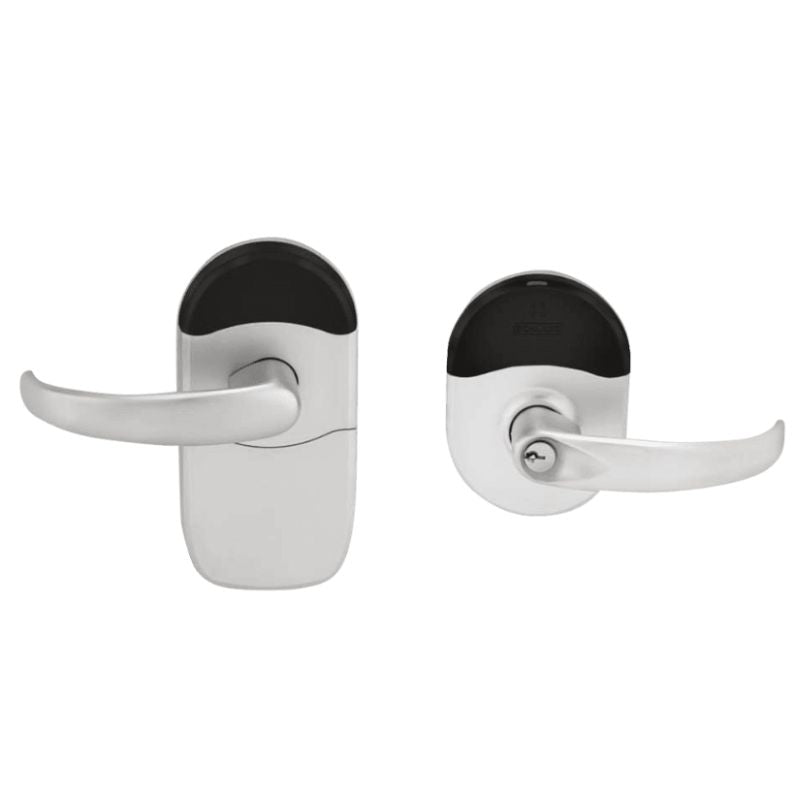

Schlage NDEBSIP-BRK-626 ENGAGE Series Wireless Cylindrical Lock, 2.4 GHz Bluetooth Low Energy Reader, Mobile Enabled Multi-Function with HID Credentials, BRK Lever, Sch C Keyway Keyed Random, 2 Keys, Field Reversible, Grade 1, US26D Satin Chrome Finish

 Schlage NDEBSIP-BRK-626 ENGAGE Series Wireless Cylindrical Lock is equipped with a 2.4 GHz Bluetooth Low Energy Reader and supports HID credentials. The BRK Lever design is both field reversible and includes 2 keys. This grade 1 lock features a Sch C Keyway and is finished with US26D Satin Chrome for a sleek and professional look.

NDEBSi Mobile enabled cylindrical with configurable functions that support HID® credential types

NDE Series Wireless Cylindrical Locks

NDE wireless locks are integrated into popular PACS provider systems and now offer Bluetooth and NFC mobile credentials.

Reader options

• Multi-technology reader compatible with proximity (125 kHz), smart (13.56 MHz) and NFC credentials
• NDEB model also compatible with Bluetooth (BLE, 2.4GHz)

Connectivity

• Wi-Fi access point (automatic daily updates)
• ENGAGE™ Gateway allows real time communication; RS-485 to alliance access control panel or IP to host software

Communication standards

• 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n)
• WPA2, WPA, WEP, 802.1x
• Bluetooth low energy (version 4.2)
• Transport Layer Security (TLS) version 1.2
• Advanced Encryption Standard (AES), 256-bit

Chassis

• Built on Schlage ND mechanical lock
• Cylindrical 161L door prep with minor modifications

Cylinder and keys

• Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys
• Classic and restricted keyways, master keying and grand master keying options
• Key-in-lever, FSIC, and SFIC cylinder options
• Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders

Functionality

NDEB

• Storeroom
• Office
• Privacy
• Apartment
