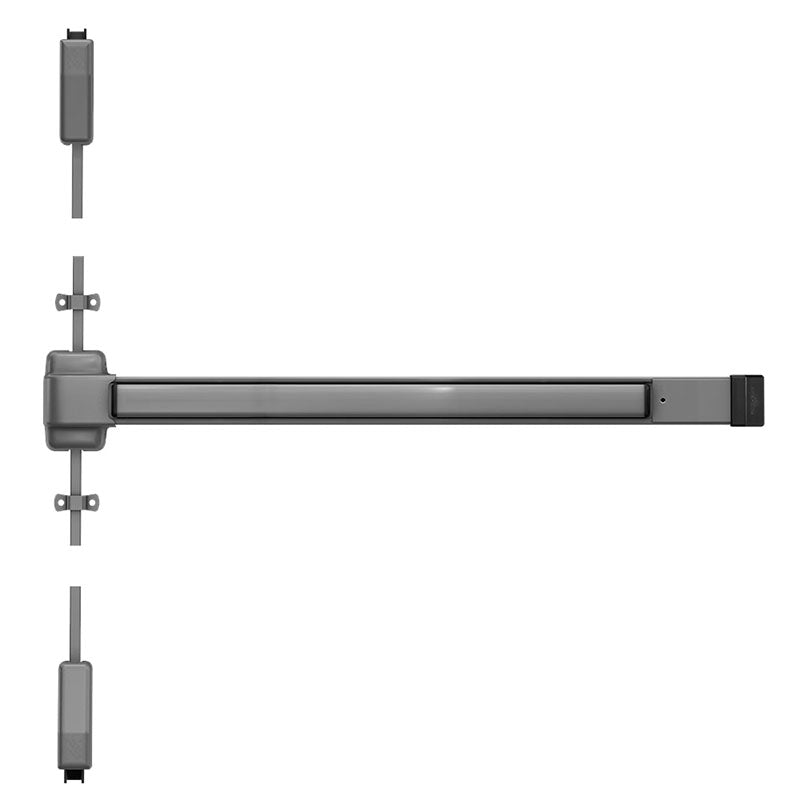

Von Duprin 2227EO-F Surface Vertical Rod Fire Exit Device, Exit Only, Fire Rated, for 84" High Doors

  • SKU: 2227EOF3689

Von Duprin 2227EO-F Surface Vertical Rod Fire Exit Device, Exit Only, Fire Rated, for 84" High Doors

  • SKU: 2227EOF3689
Sale price$1,190.00/ea
In Stock
In Stock
Finish: 689 Aluminum Painted
Length: 3' - (26.5" - 36")

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin 2227EO-F Surface Vertical ...
Quantity
+
Sale priceFrom $1,144.00
Von Duprin Trims For Von Duprin 22 & ...
Quantity
+
Sale priceFrom $108.00
Schlage Rim Cylinders - Multiple Keyw...
Quantity
+
Sale priceFrom $136.00
Total

Von Duprin 2227EO-F Grade 1 Surface Vertical Rod Fire Exit Device, Exit Only, Fire Rated, Comes Less Trim, Hex Key Dogging, Field Reversible

Multi-Function Device: Trims below decide the function of the device;
210NL Night Latch Trim
 - Key retracts latch bolt
210DT Dummy Trim - Pull when dogged
210K  Knob Trim - Key locks and unlocks
210K-BE Knob with Blank Escutcheon - Always operable, no cylinder
230EO Exit Only Plate - Exit only plate
230DT Dummy Trim - Pull when dogged
230NL Night Latch Trim Key retracts latch bolt
230TP-BE Thumbpiece Blank Escutcheon - Always operable, no cylinder
230TP Thumbpiece Key locks and unlocks
230L Lever Exit Trim - Key locks and unlocks
230L-BE Lever with Blank Escutcheon - Always operable, no cylinder

2227 Series Surface Vertical Rod Exit Device

UL listed for Panic Exit Hardware.

 Devices are ANSI A156.3 – 2008 Grade 1. Covers stock hollow metal doors with 86 or 161 cutouts. Fits door stiles as narrow as 3 5/8" (92 mm). The device is non-handed.

  • Device functions: Ships ready for all functions, EO, DT, NL, TP, K, L
  • Device lengths: 3' (914 mm), 4' (1219 mm)
  • Door height: 7' (2134 mm) standard door height extension rods available for door heights up to 10' (3048mm) 12" (205 mm), door height 36" (914 mm), door height
  • Device centerline from finished floor: 39 13/16" (1011 mm)
  • Center case dimensions: 4 1/4" (108 mm) x 1 3/8" (41 mm) x 2 3/8" (60 mm)
  • Mechanism case dimensions: 2" (51 mm) x 3 3/4" (95 mm)
  • Projection push bar: Push bar neutral - 3 3/4" (95 mm) Push bar depressed - 3" (76 mm)
  • Door undercut: 1 /4" (7 mm) from finished floor recommended , 3 /4" (19mm) maximum or 1 /8" (3mm) from threshold
  • Latch bolt: Deadlocking anti-friction top and bottom bolt, 5 /8" (16 mm) throw
  • Fasteners & sex bolts (SNB): Includes 1 3/4" (44 mm) and 2 1/4" (57 mm) wood & metal doors. Optional SNB available for device.
  • Electric options: LX latchbolt monitor switch RX pushpad monitor switch RX2 double pushpad monitor switch ALK alarm exit kit CON Allegion Connect
  • Mechanical options: PL pullman latch GBK glass bead kit RG rod guards LG latch guards
  • Dogging feature: Hex key dogging standard
  • Dogging options: LD less dogging
  • Strikes: 299 – Dull black Bottom 248L-4 and 304L – unfinished
    Manufacturer Von Duprin
    SKU 2227EO 3
    Grade Grade 1
    Installation Commercial
    Origin USA
    Unit of Measure Each
    UL Listing Type UL 305
    ANSI Number A156.3
    Restrictions No
    BAA Qualified Yes
    Limited Warranty 3 Years
    Fire Rated No
    Burglar Rated No
    ADA Compliance No




    Physical Appearance Wide Stile Pushpad
    Device Type Surface Vertical Rod
    Mechanical Function Exit Only, Accepts Various Trim
    Device Length 36" or 48"
    Hand Non-Handed
    Dogging Options Hex Key Dogging
    Top Strike 299
    Strike Bottom 304L & 248L-4
    Includes Trim No
    Trim Type Less trim
    Includes Cylinder(s) No
    Cylinder Type Non-Keyed
    Minimum Stile Size 3-5/8"
    Door Material Metal or Wood
    Door Width (26.5" - 36") or (32.5" - 48)
    Door Height 84"
    Door Thickness 1-3/4" - 2-1/4"
    Fire Rated No
    Reversible Yes
    Product Type Surface Vertical Rod Exit Devices
