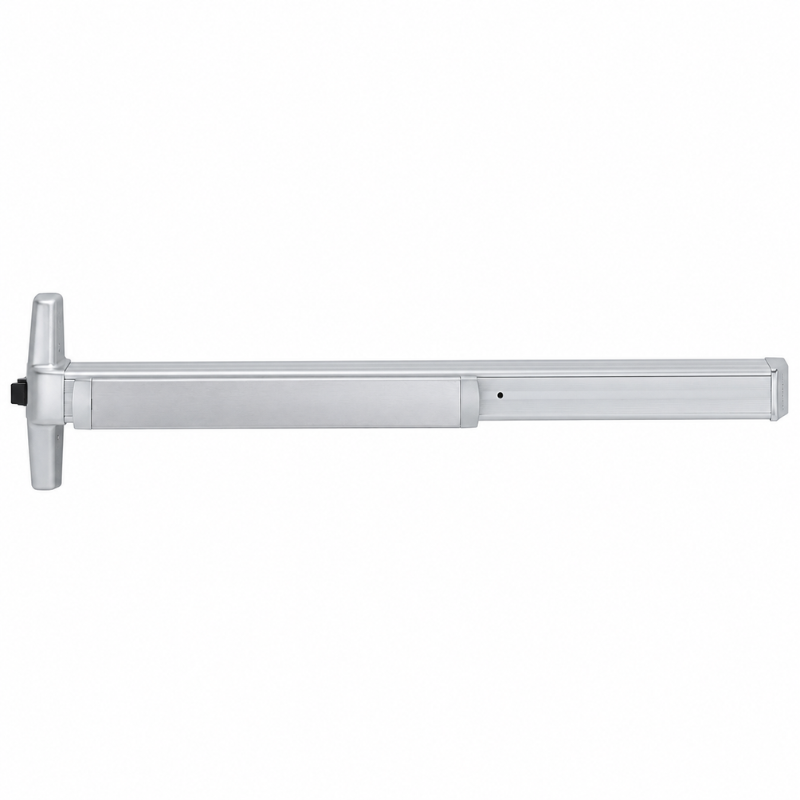

Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging

  • SKU: 33AEO3626
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging
Zoomed view
All Von Duprin Products

Von Duprin 33AEO Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging

  • SKU: 33AEO3626
  • ✓
    In Stock
    In Stock
Your Price
$2,645.00/ea
Finish: US26D-626 Satin Chrome

Von Duprin 33AEO-3 Rim Exit Device, Narrow Stile Pushpad, 36 Inch, Exit Only, Less Trim, Hex Key Dogging, Grade 1, Non Handed

The Von Duprin 33AEO Rim Exit Device delivers reliable, code-compliant egress for high-traffic openings where a clean, low-profile look matters. Built for narrow stile aluminum, hollow metal, or wood doors, this 36-inch device is configured as exit only (EO), meaning there is no outside trim and the pushpad provides free egress from the secure side. The 33A series features a smooth touchpad design and a heavy-duty rim latch that projects to engage a standard strike. Hex key dogging lets you hold the pushpad depressed for push/pull operation during business hours, while the Grade 1, non-handed construction ensures durable, versatile performance across a wide range of commercial installations.

Features

  • Narrow stile pushpad design ideal for aluminum storefront and glass doors.
  • 36-inch device length suited for standard door widths.
  • Exit only (EO) function with no outside trim for pure egress applications.
  • Hex key dogging allows the latch to be held retracted for push/pull operation.
  • Grade 1 ANSI/BHMA rating for demanding, high-cycle environments.
  • Non-handed for simplified ordering and field installation.
  • Rim-mounted latch engages a surface strike for straightforward setup.

Functional Details

The 33AEO operates as an exit-only rim device: depressing the pushpad retracts the rim latch to release the door for immediate egress, with no operating trim on the exterior. Hex key dogging keeps the pushpad depressed and the latch held back for periods of free traffic flow.

  • EO – Exit Only (no outside trim)
  • Rim mounted exit device
  • Hex key dogging standard
Manufacturer Von Duprin
SKU 33A-EO
Series 33A/35A
Device Type Rim Exit Device
Function Exit Only (Less Trim)
Grade Grade 1
Handing Non-Handed
Dogging Hex Key Dogging
Origin USA
Unit of Measure Each
UL Listing Type UL Listed Panic Hardware
ANSI Number ANSI/BHMA A156.3
BAA Qualified Yes
Limited Warranty Yes
Device Length 36 Inch
Stile Application Narrow Stile
Mounting Rim
Latchbolt Type Deadlatching Pullman-type
Latch Bolt Throw 3/4 Inch
Minimum Door Width See catalog sizing chart
Maximum Door Width Up to 36 Inch (device size)
Door Type Aluminum, Hollow Metal, Wood
Pushpad Coverage Approximately half door width
Fire Rating Non-Fire Rated (dogging model)
Strike Rim Strike
