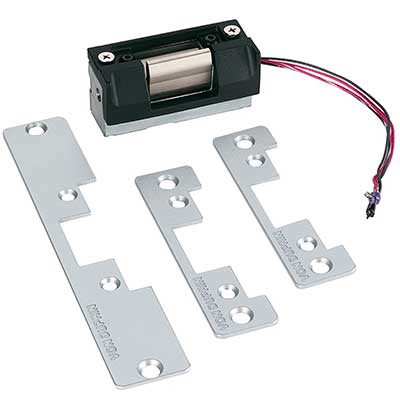

Von Duprin 5100-3FP-SP28 Electric Strike - Field Selectable (Fail Safe/Secure), 12/24VDC, 4-7/8" x 1-1/4" and 7-15/16" x 1-7/16" Faceplate, For use with Cylindrical Locks on Single Doors, US28/689 Aluminum Painted Finish
The 5100 electric strike is compatible with a wide range of cylindrical devices and is extremely versatile for field conversions. The combination of three faceplate options plus field selectable voltage and power fail modes allows it to be changed on the job site to create as many as 12 different configurations. An adjustable keeper also improves fit for applications with weather stripping or tight door preps. In short, the 5100 provides added convenience by ensuring the right parts are in the box to get the job done.
Like other Von Duprin strikes, the 5100 was developed to meet high standards and engineered for reliability and quality. Its durable construction and tamper-resistant design stands up to abuse and is tested to over one million cycles.
Function | Field Selectable (Fail Safe/Secure) |
Operating Voltage | 12/24VDC |
Amp Draw | 380mA at 12VDC, 190mA at 24VDC |
Keeper Size | Adjustable |
Configuration | Centered |
For Use With | Rim Exit Devices |
Faceplate Size | 4-7/8" x 1-1/4" and 7-15/16" x 1-7/16" |
Faceplate Depth | 1-11/16" |
Frame Depth | 1-5/8" |
Fire Rated | No |
Product Type | Electric Strikes |
