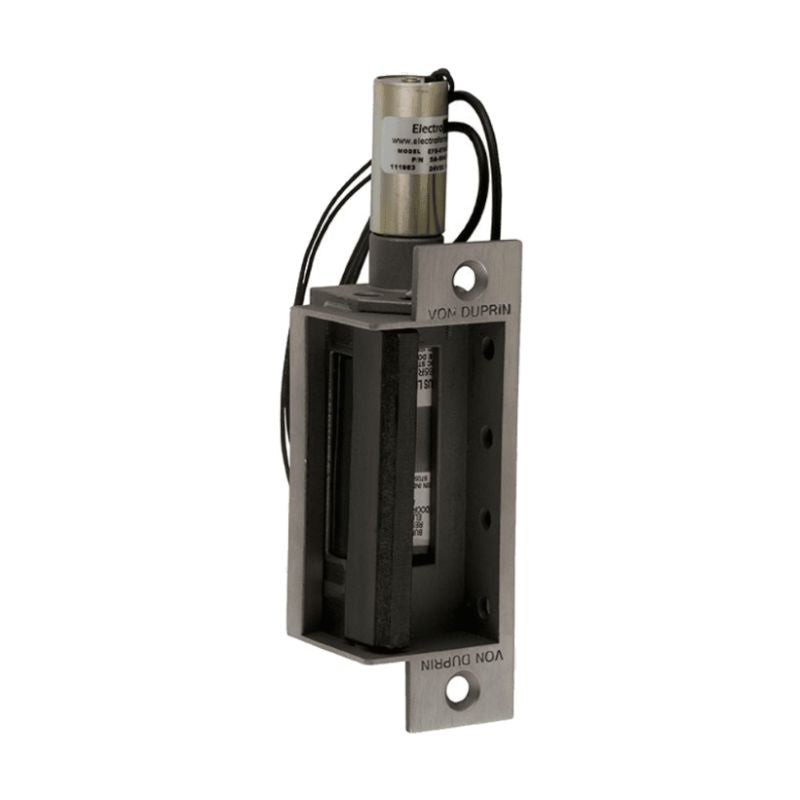

Von Duprin 6210 24V 32D DS, Electric Strike, Fail Secure (Electrically Unlocked) 24VDC, 4-7/8" x 1-1/4" Faceplate, Fire-rated, For use with Mortise Locks on Single Doors, Hollow Metal or Aluminum Frame, Satin Stainless Steel Finish

The Von Duprin 6210 24V 32D DS electric strike is designed for use with mortise locks on single doors in hollow metal or aluminum frames. This strike is fail-secure, electrically unlocked, and has a fire rating. It features a 24VDC power source and a 4-7/8" x 1-1/4" satin stainless steel faceplate.

Monitors latch bolt and lock status. DS switches rated at 24 VDC 50 milliampere - 2 amps.

6200 Series Electric Strikes

Designed for use with a variety of mortise or cylindrical locksets, as well as mortise exit devices.

• Non handed design provides greater flexibility
• Strike box is adjustable to compensate for misalignment of the door or frame
• Two piece plug connectors are furnished for ease of installation and for removal during strike servicing
• ANSI 156.5 Grade 1, 1500 lb hold-force rated
• UL1034 Burglary-Resistant and UL10C Electric Strike for Fire Door
• Six finishes available to suite with existing hardware
• Durable stainless steel construction
• 24 VDC standard with 12 VDC and AC operation optional
• Meets BHMA A156.31, Grade 1 for endurance and strength
• Static strength 1300 lbs
• Dynamic strength 70 ft-lbs
• Endurance 1,000,000 cycles
