Technical Specifications
| Function |
Electrically Locked (Fail Safe) |
| Operating Voltage |
24VDC |
| Amp Draw |
330mA |
| Keeper Size |
Pullman Keeper |
| Configuration |
Centered |
| For Use With |
Cylindrical/Mortise Locks |
| Faceplate Size |
4-7/8" x 1-1/4" |
| Frame Depth |
1-21/32" |
| Ramp Cut Out |
3-3/8" |
| Fire Rated |
Yes |
| Frame Application |
Hollow Metal or Aluminum |
| Product Type |
Electric Strikes |
Von Duprin 6211 24V US32D FS CON Electric Strike for Mortise or Cylindrical Locks, 24VDC, Fail Safe, Allegion Connect, US32D/630 Satin Stainless Steel Finish
The Von Duprin 6211 Electric Strike is a heavy-duty, stainless steel electric strike that is UL1034 listed and meets ANSI/BHMA Grade 1. It is a 24V electric strike. The 6211 is fail-safe and has Allegion Connect.
It is designed to withstand great abuse. The 6211 is designed for mortise locks without a deadbolt and cylindrical locks in single-door applications.
It has a US32D/630 satin stainless steel finish.

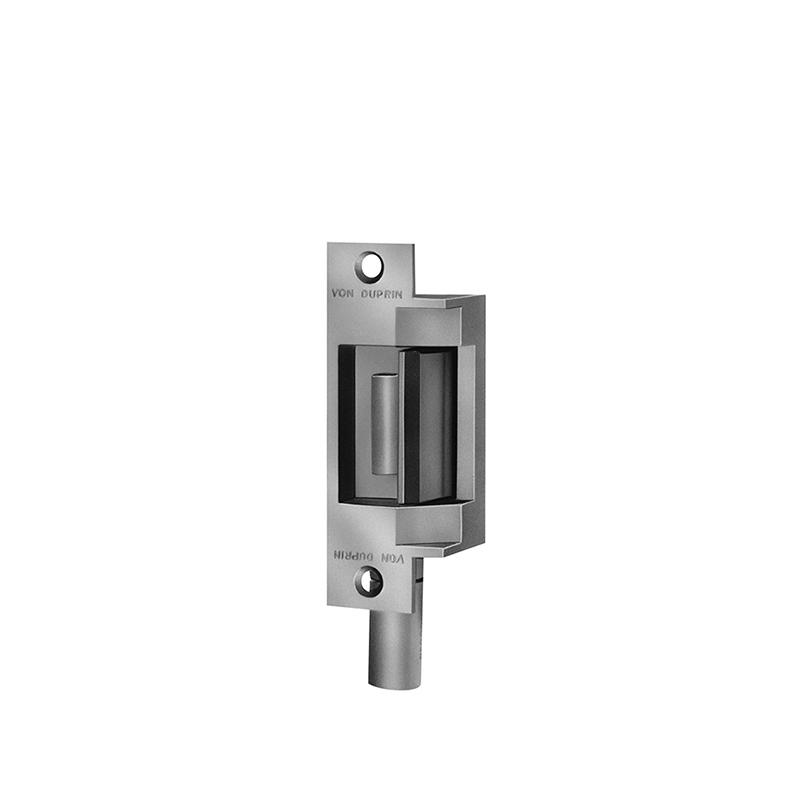

Von Duprin 6211 Electric Strike Image
