Technical Specifications
| Function |
Electrically Unlocked (Fail Secure) |
| Operating Voltage |
12/24VDC |
| Amp Draw |
500mA at 12VDC, 240mA at 24VDC |
| Keeper Size |
Pullman Keeper |
| Configuration |
Centered |
| For Use With |
Rim Exit Devices |
| Faceplate Size |
9" x 1-3/4" |
| Faceplate Depth |
3/4" |
| Fire Rated |
Yes |
| Frame Application |
Hollow Metal, Aluminum, or Wood |
| Product Type |
Electric Strikes |

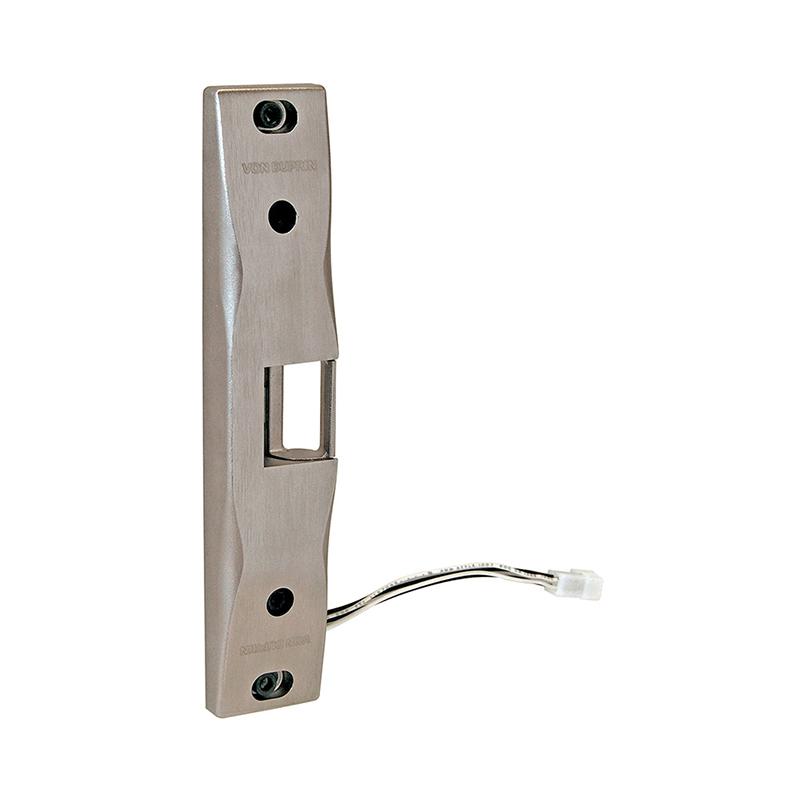

Von Duprin 6300 US32D Electric Strike, for Rim Exit Devices, No Cut Surface Mount, 12/24VDC, US32D/630 Satin Stainless Steel Finish
6300 US32D Von Duprin Electric Strike Heavy-duty stainless steel construction is fully UL1034 and UL10C Listed. Electric Strike, for Rim Exit Devices, No Cut Surface Mount, 12/24VDC, Satin Stainless Steel
The Von Duprin 6300 is a surface-mounted electric strike for rim exit devices. The 6300 is a heavy-duty stainless steel strike that is UL1034 and UL10C listed and meets ANSI/BHMA Grade 1.
