Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Night Latch Function |
| Device Length | 36" or 48" |
| Hand | Non-handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Pull |
| Trim Design | Escutcheon Pull |
| Trim Part | 990NL-R/V 26D |
| Includes Cylinder(s) | No |
| Cylinder Type | Rim |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 36" Bar - 28" - 36" Wide Doors 48" Bar - 34" - 48" Wide Doors |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
Product Specs
| Manufacturer | Von Duprin |
| SKU | 98NL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
98NL-F Finishes Available
Satin Chrome:
98NL-F-3-626
98NL-F-4-626
Satin Aluminum:
98NL-F-3-628
98NL-F-4-628
Bright Chrome:
98NL-F-3-625
98NL-F-4-625
Satin Bronze:
98NL-F-3-612
98NL-F-4-612
Dark Bronze Anodized:
98NL-F-3-710
98NL-F-4-710
Satin Brass:
98NL-F-3-606
98NL-F-4-606
Bright Brass:
98NL-F-3-605
98NL-F-4-605
Black Anodized ALuminum:
98NL-F-3-711
98NL-F-4-711
Aged Bronze:
98NL-F-3-643E
98NL-F-4-643E

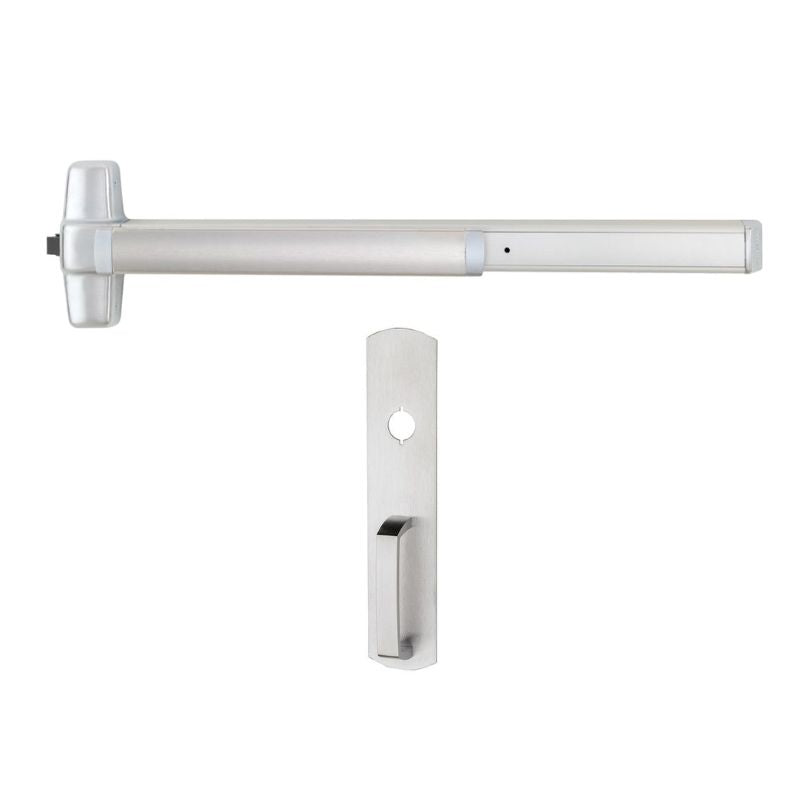

Von Duprin 98NL Rim Fire Exit Device, Fire Rated Wide Stile Pushpad, Night Latch Function, 990 NL RV Escutcheon Pull, Less Cylinder, Less Dogging, Non-handed
- Available in 3' and 4' lengths
- Sold Less Cylinder
- Fire Rated
Features 990NL-RV Pull Trim (Night Latch Function):
- Key retracts latchbolt
- Rim and 1 ¼" mortise cylinder
- Escutcheon Pull Trim
98 Series Rim Exit Device
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What types of doors is this exit device compatible with?
The Von Duprin 98NL-F can be installed on both single and double doors, making it a versatile choice for commercial spaces.
