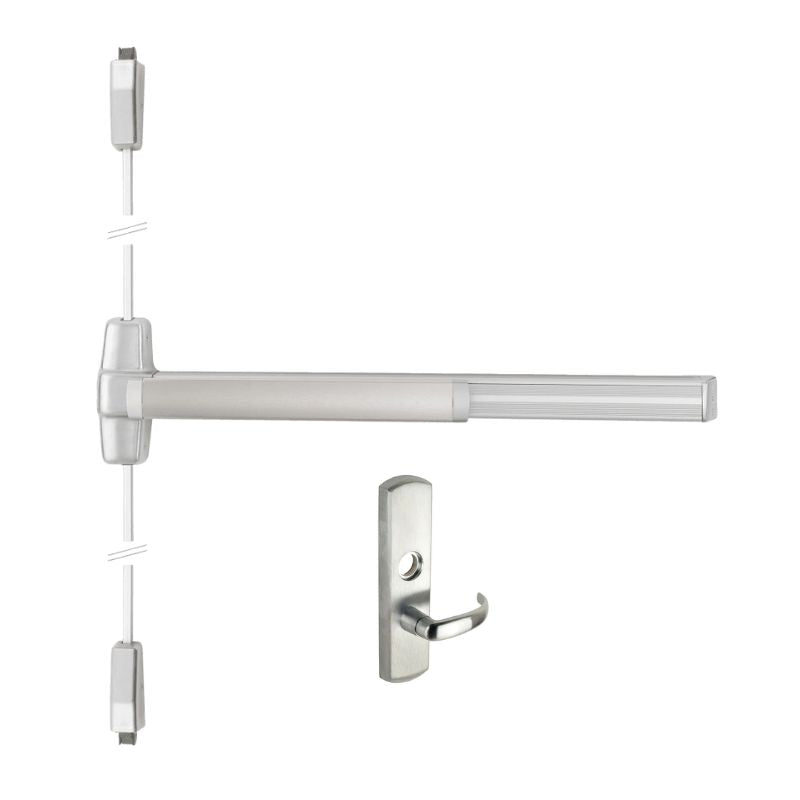

VonDuprin 9927L-NL-F-17-626 Fire Rated Surface Vertical Rod Exit Device, Night Latch Function, 17 Lever with Escutcheon, 84" Door Ht, Less Cylinder, Field Reversible, Grade 1, US26D Satin Chrome Finish

The Von Duprin 9927LNL-F-17 Fire Rated Surface Vertical Rod Exit Device features the Night Latch Function and a 17 Lever with Escutcheon, making it ideal for use on 84" doors. This device is Field Reversible and Grade 1, with a US26D Satin Chrome Finish for a sleek and durable look.

Features: Von Duprin 996L-NL-17-RV Night Latch Pull Trim

• Night Latch Function: Key retracts latch bolt
• ANSI Function: 03
• Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
• Projection: 2 7⁄8" (73mm)
• Cylinder Type: Rim Cylinder
• Handed/Field Reversible


9927 Series Surface Vertical Rod Exit Device

• Device functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from the device.
• Device lengths: 2' 2" (610 mm) Door size (shipped less UL label) 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 395 /8" (1006 mm)
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar Neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking anti-friction top & bottom bolt, 5 /8" (16mm) throw
• Door undercut 1 /4" (7mm) recommended
• Top & bottom Latch case: 4 1/2" x 2 1/8" x 1 1/2" (114mm x 54mm x 38mm)
• Vertical rods: 1 /2" square tubing, standard rods accommodate 7' (2134mm) doors. Top rod length: 34 15/16" (887mm); Bottom rod length: 31 1/2" (794mm) Extension rods available in 1' (205mm) or 3' (914mm) for doors over 7'. One piece top rod is available for 8' (2438mm) and 10' (3048mm) doors.
• Fasteners & sex bolts: (SNB) Includes screw pack for 1 3/4" (44mm) to 2 1/4" (57mm) thick metal or wood doors, and 325 SNB for top and bottom latch. Optional 425 SNB available.
