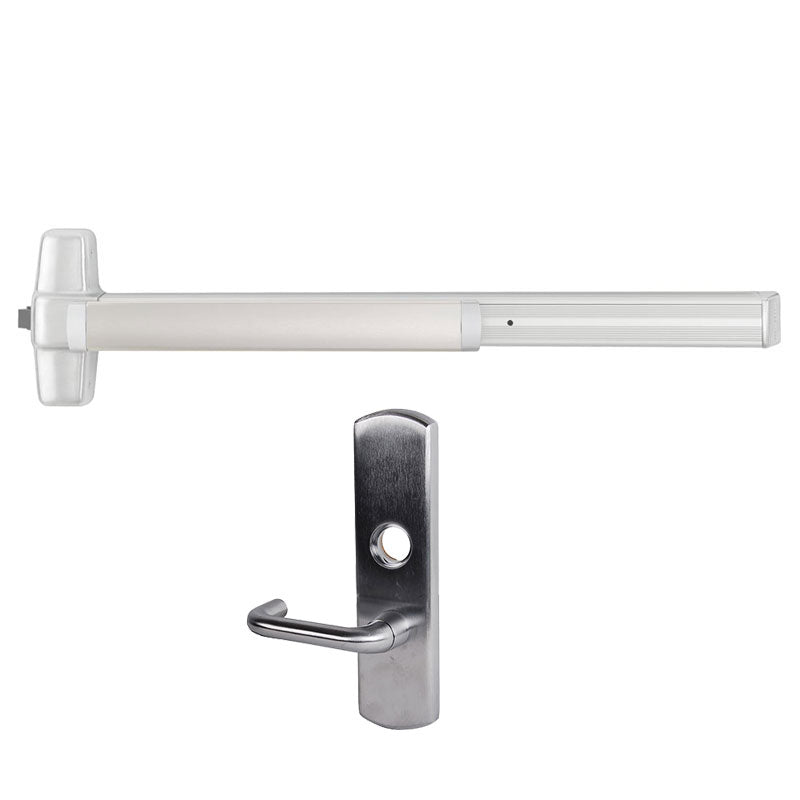

Von Duprin 99L-03 Rim Panic Exit Device, 03 Lever Trim, Classroom Function

  • SKU: 99L033US26DLHR
Von Duprin 99L-03-626-LHR Rim Exit Device
Von Duprin 99L-03-US28-LHR Rim Exit Device
Von Duprin 99L-03-313-LHR Rim Exit Device
Von Duprin 99L-03-US28-RHR Rim Exit Device
Von Duprin 99L-03-US26D-RHR Rim Exit Device
Von Duprin 99L-03-313-RHR Rim Exit Device
Von Duprin 99L-03-626-LHR Rim Exit Device
Von Duprin 99L-03-US28-LHR Rim Exit Device
Von Duprin 99L-03-313-LHR Rim Exit Device
Von Duprin 99L-03-US28-RHR Rim Exit Device
Von Duprin 99L-03-US26D-RHR Rim Exit Device
Von Duprin 99L-03-313-RHR Rim Exit Device
All VON DUPRIN Products

Von Duprin 99L-03 Rim Panic Exit Device, 03 Lever Trim, Classroom Function

  • SKU: 99L033US26DLHR
$2,643.00/ea
In Stock
In Stock
Length: 3' - (28" - 36" Wide Doors)
Finish: US26D Satin Chrome (626)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin 99L-03 Rim Panic Exit Devi...
Quantity
–
+
From $2,458.00
Schlage Rim Cylinders - Multiple Keyw...
Quantity
–
+
From $132.00
Total

Von Duprin 99L-03 Grade 1 Rim Panic Exit Device with 03 Lever Escutcheon Trim, Classroom Function, Wide Stile Pushpad, Sold Less Cylinder

  • Available in 3' and 4' lengths
  • Sold Less Cylinder

Features 996L-R/V-03 Lever Trim (Classroom Function):

  • Key locks and unlocks
  • Rim and 1 ¼" mortise cylinder
  • 03 - Lever Style
  • Field Reversible
  • R/V - For Rim or Vertical Rod Exit Devices

    99 Series Rim Exit Device

    Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

    The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
    • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
    • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
    • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
    • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
    • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
    • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
    • Latch bolt: Deadlocking, 3/4" (19mm) throw
    • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
    Manufacturer Von Duprin
    SKU 99L-03
    Grade Grade 1
    Installation Commercial
    Origin USA
    Unit of Measure Each
    UL Listing Type UL 305
    ANSI Number A156.3
    Restrictions None
    BAA Qualified Yes
    Limited Warranty 3 Years
    Fire Rated No
    Burglar Rated No
    ADA Compliance No
    Physical Appearance Wide Stile Pushpad
    Device Type Rim
    Mechanical Function Classroom Function
    Device Length 36" or 48"
    Hand Left Hand Reverse or Right Hand Reverse
    Dogging Options Hex Key Dogging
    Includes Trim Yes
    Trim Type Lever
    Trim Design Lever with Escutcheon
    Trim Part  996L-03-R/V
    Includes Cylinder(s) No
    Cylinder Type Rim
    Minimum Stile Size 4-1/2"
    Door Material Metal or Wood
    Door Width 36" Bar - 28" - 36" Wide Doors
    48" Bar - 34" - 48" Wide Doors
    Door Thickness 1-3/4" - 2-1/4"
    Fire Rated No
    Reversible Yes
    Product Type Rim Exit Devices
    Product Cut Sheet
