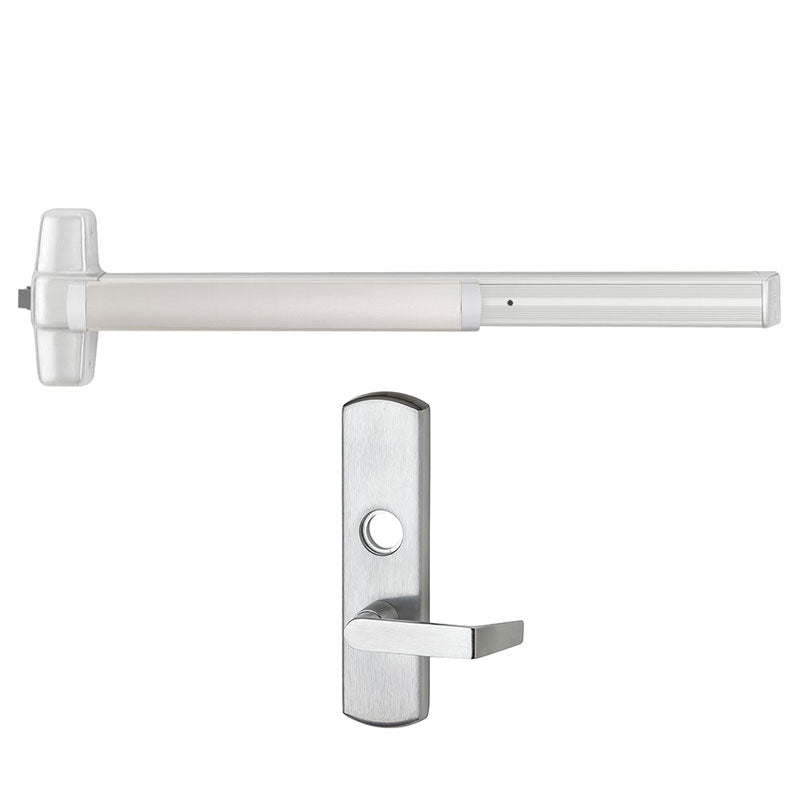

Von Duprin 99L-06 Rim Panic Exit Device, 06 Lever Trim, Classroom Function

  • SKU: 99L063US26DLHR
Von Duprin 99L-06-US26D-RHR Rim Exit Device
Von Duprin 99L-06-US28-RHR Rim Exit Device
Von Duprin 99L-06-313-LHR Rim Exit Device
Von Duprin 99L-06-313-RHR Rim Exit Device
Von Duprin 99L-06-US28-LHR Rim Exit Device
Von Duprin 99L-06-US26D-LHR Rim Exit Device
Von Duprin 99L-06-US26D-RHR Rim Exit Device
Von Duprin 99L-06-US28-RHR Rim Exit Device
Von Duprin 99L-06-313-LHR Rim Exit Device
Von Duprin 99L-06-313-RHR Rim Exit Device
Von Duprin 99L-06-US28-LHR Rim Exit Device
Von Duprin 99L-06-US26D-LHR Rim Exit Device
All VON DUPRIN Products

Von Duprin 99L-06 Rim Panic Exit Device, 06 Lever Trim, Classroom Function

  • SKU: 99L063US26DLHR
$2,643.00/ea
In Stock
In Stock
Length: 3' - (28" - 36" Wide Doors)
Finish: US26D Satin Chrome (626)
Handing: LHR - Left Hand Reverse

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin 99L-06 Rim Panic Exit Devi...
Quantity
–
+
From $2,458.00
Schlage Rim Cylinders - Multiple Keyw...
Quantity
–
+
From $132.00
Total

Von Duprin 99L-06 Grade 1 Rim Panic Exit Device with 06 Lever Escutcheon Trim, Classroom Function, Wide Stile Pushpad, Hex Key Dogging, Sold Less Cylinder

  • Available in 3' and 4' lengths
  • Sold Less Cylinder

Features 996L-R/V-06 Lever Trim (Classroom Function):

  • Key locks and unlocks
  • Rim and 1 ¼" mortise cylinder
  • 06 - Lever Style
  • Field Reversible
  • R/V - For Rim or Vertical Rod Exit Devices

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
Manufacturer Von Duprin
SKU 99L-06
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 3 Years
Fire Rated No
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Classroom Function
Device Length 36" or 48"
Hand Left Hand Reverse or Right Hand Reverse
Dogging Options Hex Key Dogging
Includes Trim Yes
Trim Type Lever
Trim Design Lever with Escutcheon
Trim Part  996L-06-R/V
Includes Cylinder(s) No
Cylinder Type Rim
Minimum Stile Size 4-1/2"
Door Material Metal or Wood
Door Width 36" Bar - 28" - 36" Wide Doors
48" Bar - 34" - 48" Wide Doors
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
