Technical Specifications
| Physical Appearance |
Wide Stile Pushpad |
| Device Type |
Rim |
| Mechanical Function |
Night Latch Function |
| Device Length |
36" or 48" |
| Hand |
Non-handed |
| Dogging Options |
Hex Key Dogging |
| Includes Trim |
Yes
|
| Trim Type |
Pull |
| Trim Design |
Escutcheon Pull |
| Trim Part |
990NL-R/V 26D |
| Includes Cylinder(s) |
No |
| Cylinder Type |
Rim |
| Minimum Stile Size |
4-1/2" |
| Door Material |
Metal or Wood |
| Door Width |
36" Bar - 28" - 36" Wide Doors
48" Bar - 34" - 48" Wide Doors
|
| Door Thickness |
1-3/4" - 2-1/4" |
| Fire Rated |
No |
| Reversible |
No |
| Product Type |
Rim Exit Devices |
Product Specs
| Manufacturer |
Von Duprin |
| SKU |
99NL-F |
| Grade |
Grade 1 |
| Installation |
Commercial |
| Origin |
USA |
| Unit of Measure |
Each |
| UL Listing Type |
UL 10C |
| ANSI Number |
A156.3 |
| Restrictions |
None |
| BAA Qualified |
Yes |
| Limited Warranty |
3 Years |
| Fire Rated |
Yes |
| Burglar Rated |
No |
| ADA Compliance |
No |
99NL-F Finishes Available
Satin Chrome
99NL-F-3-626
99NL-F-4-626
Satin Aluminum
99NL-F-3-628
99NL-F-4-628
Bright Chrome
99NL-F-3-625
99NL-F-4-625
Satin Bronze
99NL-F-3-612
99NL-F-4-612
Dark Bronze Anodized
99NL-F-3-710
99NL-F-4-710
Satin Brass
99NL-F-3-606
99NL-F-4-606
Bright Brass
99NL-F-3-605
99NL-F-4-605
Black Anodized Aluminum
99NL-F-3-711
99NL-F-4-711
Aged Bronze
99NL-F-3-643E
99NL-F-4-643E

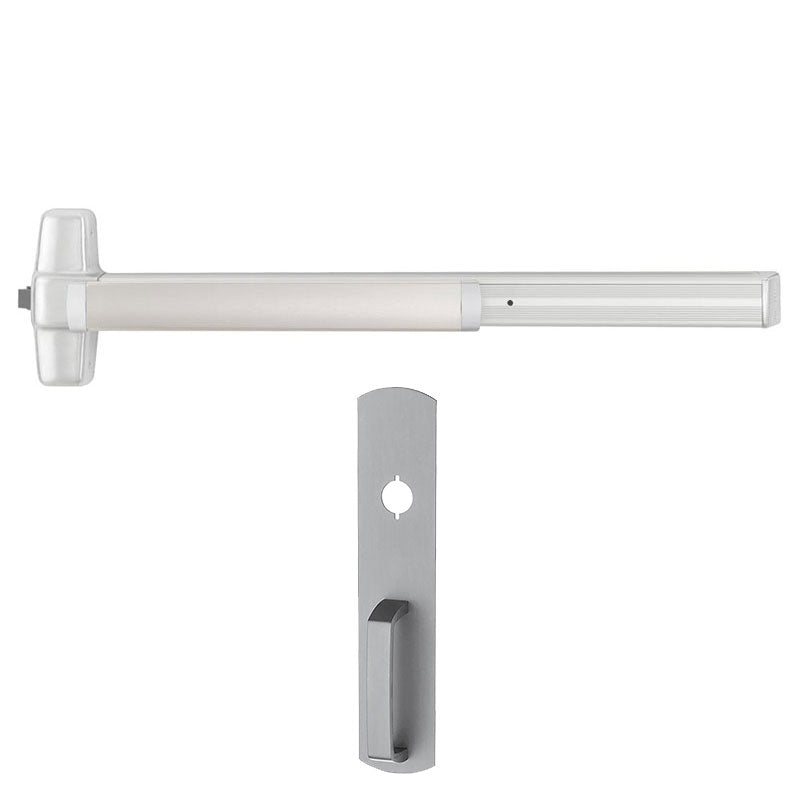

Von Duprin 99NL Rim Fire Exit Device, Fire Rated, Wide Stile Pushpad, Night Latch Function, 990 NL RV Escutcheon Pull, Less Cylinder, Less Dogging, Non-handed
- Available in 3' and 4' lengths
- Sold Less Cylinder
- Fire Rated
- Key retracts latchbolt
- Rim and 1 ¼" mortise cylinder
- Escutcheon Pull Trim
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
