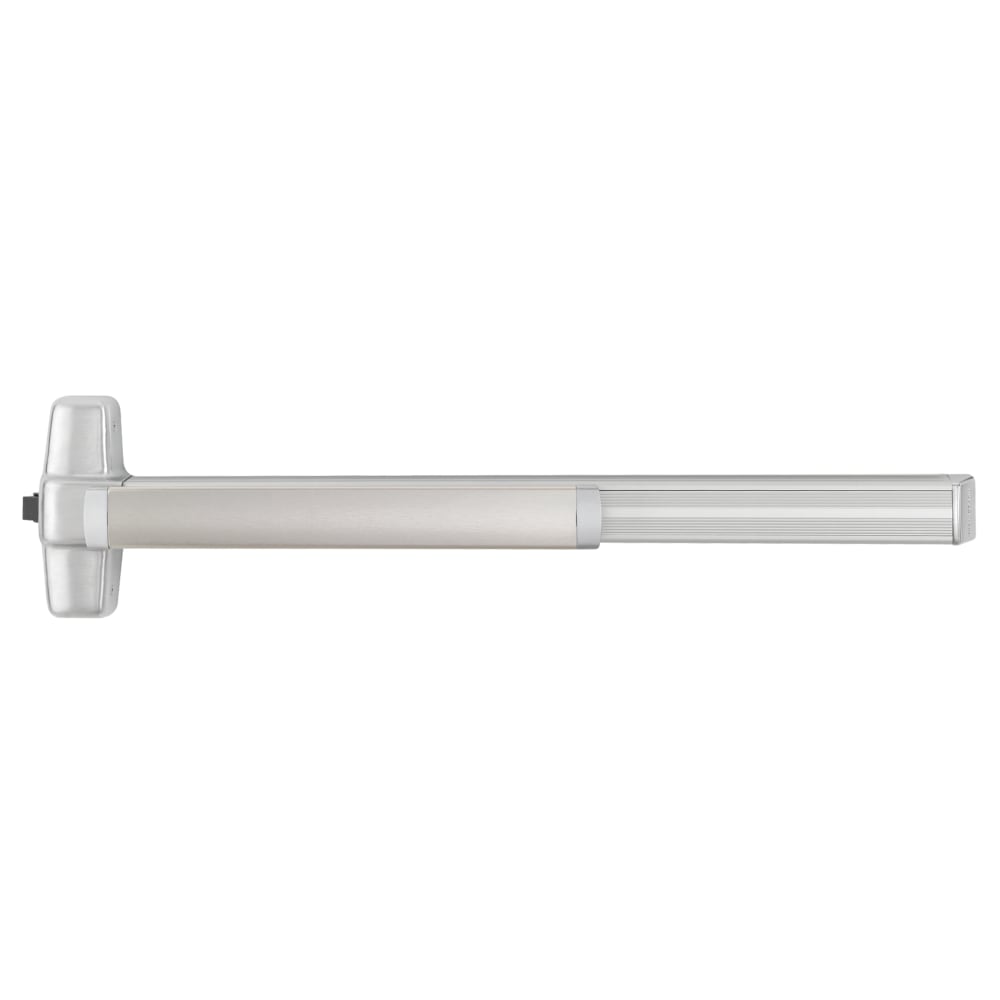

Name: Von Duprin 99NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit
Brand: VON DUPRIN
SKU: 99NLOP3628
Price: 2002.00 CAD
Availability: InStock

All VON DUPRIN Products

Von Duprin 99NL-OP Rim Panic Exit Device, Night Latch Cylinder Kit

SKU: 99NLOP3628

All VON DUPRIN Products

Buy Complete Door Hardware Set

Von Duprin 99NL-OP Rim Panic Exit Dev...

Finish:

Length:

Variant

Quantity

–

+

$2,002.00

Schlage Rim Cylinders - Multiple Keyw...

Keyway:

Finish:

Variant

Quantity

–

+

$148.00

Total $2844.00

Technical Specifications

Physical Appearance	Wide Stile Pushpad
Device Type	Rim
Mechanical Function	Night Latch Function
Device Length	36" or 48"
Hand	Non-handed
Dogging Options	Hex Key Dogging
Includes Trim	Yes
Trim Type	Cylinder Only
Trim Part	110MD-NL - Metal Doors 110WD-NL - Wood Doors
Includes Cylinder(s)	No
Cylinder Type	Rim Cylinder
Minimum Stile Size	4-1/2"
Door Material	Metal or Wood
Door Width	36" Bar - 28" - 36" Wide Doors 48" Bar - 34" - 48" Wide Doors
Door Thickness	1-3/4" - 2-1/4"
Fire Rated	No
Reversible	No
Product Type	Rim Exit Devices

Product Specs

Manufacturer	Von Duprin
SKU	99NL-OP
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL 305
ANSI Number	A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	3 Years
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Von Duprin 99NL-OP Rim Panic Device, Wide Stile Pushpad, Night Latch Cylinder Assembly, Less Cylinder, Comes with 110NL Mounting Kit

Available in 3' or 4' lengths
Specify 110MD-NL for Metal Doors & 110WD-NL for Wood Doors
Non-Handed

NL-OP Night Latch Function

Key retracts latchbolt, pull required
Takes Rim Cylinders.
OP - Optional Pull to use with a different manufacturer pull trim

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Latch bolt: Deadlocking, 3/4" (19mm) throw
Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
