Technical Specifications
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Night Latch Function |
| Device Length | 36" or 48" |
| Hand | Non-handed |
| Dogging Options | Hex Key Dogging |
| Includes Trim | Yes |
| Trim Type | Pull |
| Trim Design | Escutcheon Pull |
| Trim Part | 990NL-R/V 26D |
| Includes Cylinder(s) | No |
| Cylinder Type | Rim |
| Minimum Stile Size | 4-1/2" |
| Door Material | Metal or Wood |
| Door Width | 36" Bar - 28" - 36" Wide Doors 48" Bar - 34" - 48" Wide Doors |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | No |
| Reversible | No |
| Product Type | Rim Exit Devices |
Product Specs
| Manufacturer | Von Duprin |
| SKU | 99NL |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL 305 |
| ANSI Number | A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 3 Years |
| Fire Rated | No |
| Burglar Rated | No |
| ADA Compliance | No |
99NL Finishes Available
Satin Chrome
99NL-3-626
99NL-4-626
Satin Aluminum
99NL-3-628
99NL-4-628
Bright Chrome
99NL-3-625
99NL-4-625
Satin Bronze
99NL-3-612
99NL-4-612
Dark Bronze Anodized
99NL-3-710
99NL-4-710
Satin Brass
99NL-3-606
99NL-4-606
Bright Brass
99NL-3-605
99NL-4-605
Black Anodized Aluminum
99NL-3-711
99NL-4-711
Aged Bronze
99NL-3-643E
99NL-4-643E

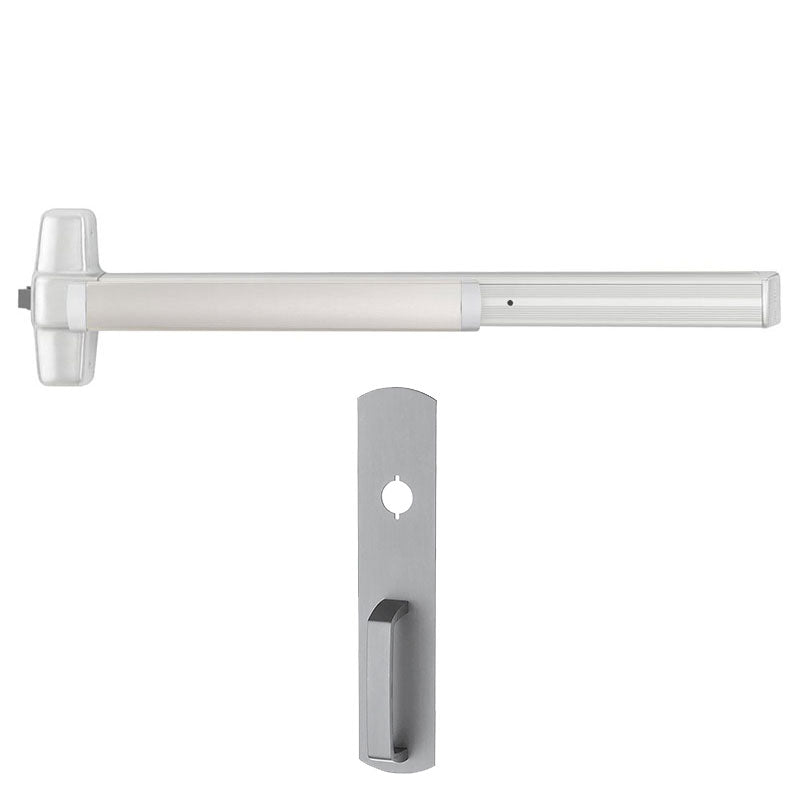

Von Duprin 99NL Rim Panic Device, Wide Stile Pushpad, Night Latch Function, 990 NL RV Escutcheon Pull, Less Cylinder, Hex Key Dogging, Non-handed, Satin Chrome Finish
- Available in 3' and 4' lengths
- Sold Less Cylinder
Features 990NL-RV Pull Trim (Night Latch Function):
- Key retracts latchbolt
- Rim and 1 ¼" mortise cylinder
- Escutcheon Pull Trim
99 Series Rim Exit Device
Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.
The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
- Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
- Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
- Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
- Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
- Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
- Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
- Latch bolt: Deadlocking, 3/4" (19mm) throw
- Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What types of doors can the Von Duprin 99NL be installed on?
The Von Duprin 99NL can be used on both single and double doors in commercial settings.
