Name: Von Duprin QEL99L-06 Rim Exit Device, Quiet Electric Latch Retraction
Brand: VON DUPRIN
SKU: QEL99L06326DLHR
Price: 3905.00 CAD
Availability: InStock

All VON DUPRIN Products

Von Duprin QEL99L-06 Rim Exit Device, Quiet Electric Latch Retraction

SKU: QEL99L06326DLHR

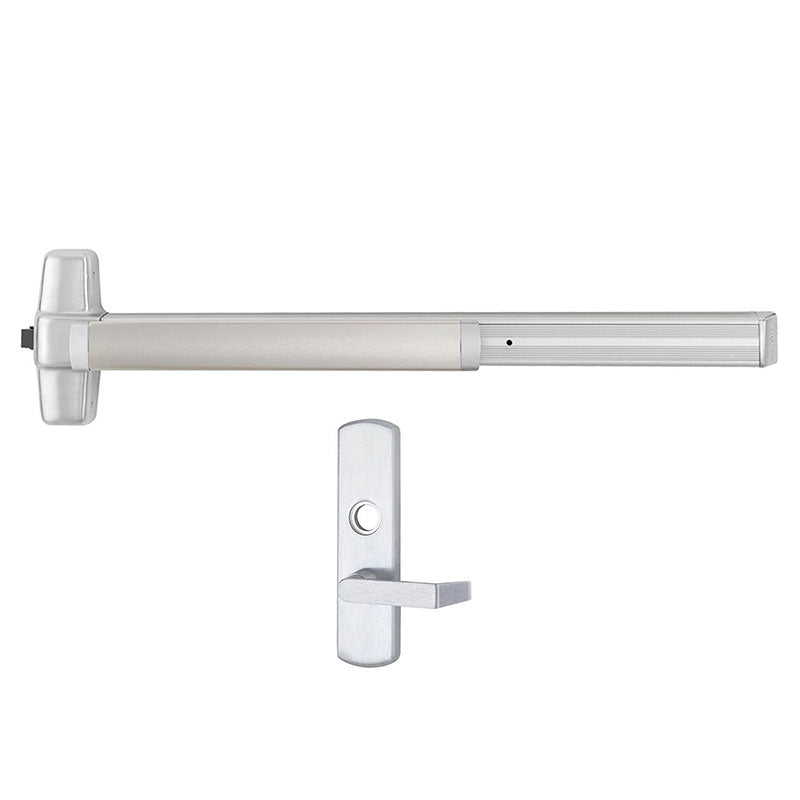

Von Durpin QEL99L-06 26D Rim Exit bar with Trim

All VON DUPRIN Products

Buy Complete Door Hardware Set

Von Duprin QEL99L-06 Rim Exit Device,...

Finish:

Length:

Handing:

Variant

Quantity

–

+

$3,905.00

Total $4595.00

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Rim
Mechanical Function	Classroom
Device Length	36" or 48"
Hand	Field Reversible
Electric Options	Motorized Latch Retraction
Voltage	24 VDC
Dogging Options	Less Dogging
Includes Trim	Yes
Trim Type	Lever
Trim Design	Lever with Escutcheon
Trim Part No.	996L-06-R/V
Includes Cylinder(s)	No
Cylinder Type	Rim
Minimum Stile Size	4-1/2"
Door Material	Metal or Wood
Door Width	26" - 48"
Door Thickness	1-3/4" - 2-1/4"
Fire Rated	No
Reversible	Yes
Product Type	Rim Exit Devices

Product Specs

Manufacturer	Von Duprin
SKU	QEL99L06
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL 305
ANSI Number	A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	1 Year
Fire Rated	No
Burglar Rated	No
ADA Compliance	No

Von Duprin QEL99L-06 Rim Exit Device, Quiet Electric Latch Retraction, Classroom Function, Escutcheon 06 Lever, Less Cylinder, Wide Stile Pushpad

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).

Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
Latch bolt: Deadlocking, 3/4" (19mm) throw
Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.
