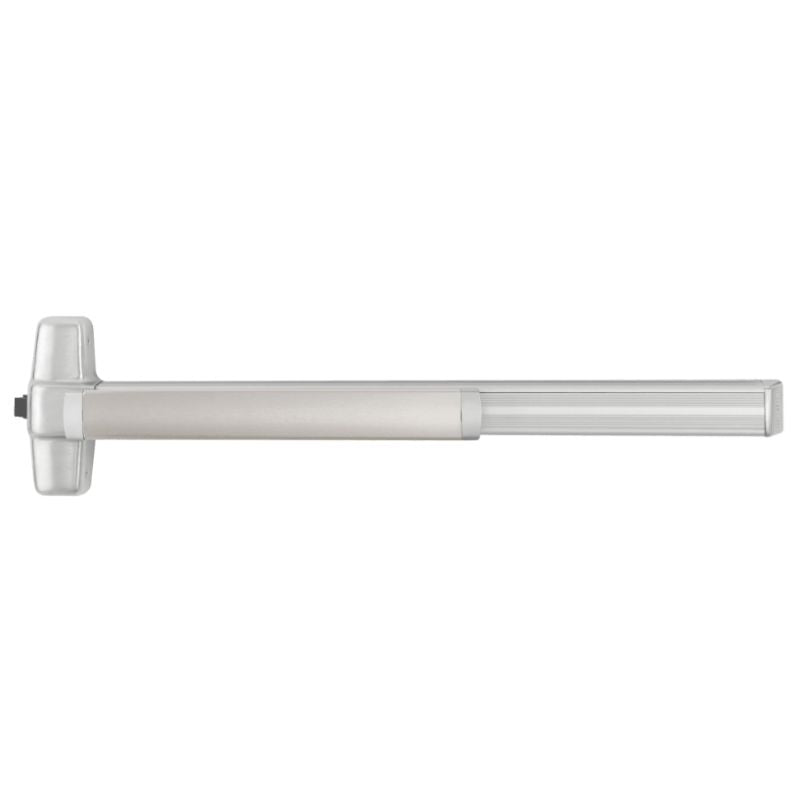

Von Duprin RX-QEL-99EO-4-626 Rim Exit Devices, Quiet Electric Latch Retraction, Satin Chrome

  • SKU: RXQEL99EO4626
Von Duprin RX-QEL-99EO-4-626
Von Duprin RX-QEL-99EO-4-626
All VON DUPRIN Products

Von Duprin RX-QEL-99EO-4-626 Rim Exit Devices, Quiet Electric Latch Retraction, Satin Chrome

  • SKU: RXQEL99EO4626
$3,648.00/ea
In Stock
In Stock
Choose Your Product Options:
Recommended
Fence Screen Height *
Standard 3′ ft. Fence Screen Colors *
Black FenceScreen Size *
Beige FenceScreen Size *
Grey FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 8′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 4′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 5′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
Standard 6′ ft. Fence Screen Colors *
Green FenceScreen Size *
Black FenceScreen Size *
Beige FenceScreen Size *
Gray FenceScreen Size *
Brown FenceScreen Size *
White FenceScreen Size *
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
How does the latch retraction work?
The RX-QEL-99EO-4-626 uses quiet electric latch retraction, meaning the latch is retracted electronically for quieter, smoother operation.
pg_image
$2,576.52
Von Duprin RX-QEL-99EO-F-4-626 Fire Rated Rim Exit Devices, Quiet Electric Latch Retraction, Satin Chrome
pg_image
$2,576.52
Von Duprin RX-QEL-99EO-3-626 Rim Exit Device, Quiet Electric Latch Retraction, Satin Chrome
pg_image
$2,576.52
Von Duprin RX-QEL-99EO-F-3-626 Fire Rated Rim Exit Device, Quiet Electric Latch Retraction, Satin Chrome
pg_image
$2,265.78
Von Duprin QEL99EO Rim Panic Exit Device, Quiet Electric Latch Retraction, Exit Only - US26D-626 Satin Chrome / 4' - (34" - 48" Doors)
★★★★★
What customers say about Quality Door & Hardware:
"Good communication and parts were shipped out quick. Thanks again!"
pg_image
$2,521.86
Von Duprin QEL99EO Rim Panic Exit Device, Quiet Electric Latch Retraction, Exit Only - US26-625 Bright Chrome / 4' - (34" - 48" Doors)
pg_image
$2,720.52
Von Duprin QEL99EO-F Rim Fire Exit Device with Quiet Electric Latch Retraction, Exit Only - US26-625 Bright Chrome / 4' - (34" - 48" Doors)
pg_image
$2,334.42
Von Duprin QEL99EO Rim Panic Exit Device, Quiet Electric Latch Retraction, Exit Only - US4-606 Satin Brass / 3' - (28" - 36" Doors)
★★★★★
What customers say about Quality Door & Hardware:
"The rubber threshold product work perfectly to fill the gap where we had taken out a wall. Very sturdy and durable ..."
pg_image
$2,521.86
Von Duprin QEL99EO Rim Panic Exit Device, Quiet Electric Latch Retraction, Exit Only - US3-605 Bright Brass / 4' - (34" - 48" Doors)
pg_image
$2,550.90
Von Duprin QEL99EO-F Rim Fire Exit Device with Quiet Electric Latch Retraction, Exit Only - US4-606 Satin Brass / 4' - (34" - 48" Doors)
pg_image
$2,521.86
Von Duprin QEL99EO Rim Panic Exit Device, Quiet Electric Latch Retraction, Exit Only - 643E Aged Bronze / 4' - (34" - 48" Doors)
★★★★★
What customers say about Quality Door & Hardware:
"Great to work with and always have everything I'm looking for available. My go to door and hardware supplier!"

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Von Duprin RX-QEL-99EO-4-626 Rim Exit...
Quantity
–
+
$3,648.00
Von Duprin Exit Device Trims for 98/9...
Quantity
–
+
$769.00 $0
Schlage Rim Cylinders - Multiple Keyw...
Quantity
–
+
$143.00 $0
Command Access Technologies MLRK1-VD ...
Quantity
–
+
$667.00
Total $5227.00

Technical Specs

Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Exit Only, Accepts Various Trim
Device Length 48"
Hand Non-handed
Switch Type Request to Exit
Electric Options Motorized Latch Retraction
Voltage 24 VDC
Dogging Options Less Dogging
Includes Trim No
Trim Type Less Trim
Trim Design Less Trim
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 3-5/8"
Door Material Metal or Wood
Door Width 37" - 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated No
Reversible No
Product Type Rim Exit Devices

Product Specs

Manufacturer Von Duprin
SKU RXQEL99EO 4 26D
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL 305
ANSI Number A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 1 Year
Fire Rated No
Burglar Rated No
ADA Compliance No
Finish
Finish 626/US26D
Finish Description Satin Chrome
Finish Family Matte Silver

Von Duprin RX-QEL-99EO-4-626 Rim Exit Device, Wide Stile Push pad, 48" Device For 34" to 48" Door Width, Exit Only, Less Trim, Quiet Electric Latch Retraction, Request to Exit Switch, Less Dogging, Grade 1, Non Handed, US26D Satin Chrome Finish

The Von Duprin RX-QEL-99EO-4-626 Rim Exit Bar features a 48 inch wide stile pushpad and is designed for exit-only use. It is equipped with a quiet electric latch retraction and request to exit switch, and has a grade 1 rating for durability. This non-handed device also includes a satin chrome finish and does not require dogging.

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

The rim device is non-handed except when the following device options are used: SD (special dogging), -2 (double cylinder) or SS (signal switch).
  • Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
  • Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
  • Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
  • Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
  • Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
  • Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
  • Latch bolt: Deadlocking, 3/4" (19mm) throw
  • Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Multi-Function Device: Trims below decide the function of the device;
990EO Exit Only Plate
990NL Night Latch Trim - Key retracts latch bolt
990DT Dummy Pull Trim - Pull when dogged
990TP Thumbpiece Trim - Key locks and unlocks
990TP-BE Thumbpiece, Blank Escutcheon - Always operable, no cylinder
996EO Exit Only Plate
996L Lever Trim - Key locks and unlocks
996L-NL Night Latch Trim - Key retracts latch bolt
996L-DT Lever Dummy Trim - Pull when dogged
996L-BE Lever, Blank Escutcheon - Always operable, no cylinder
