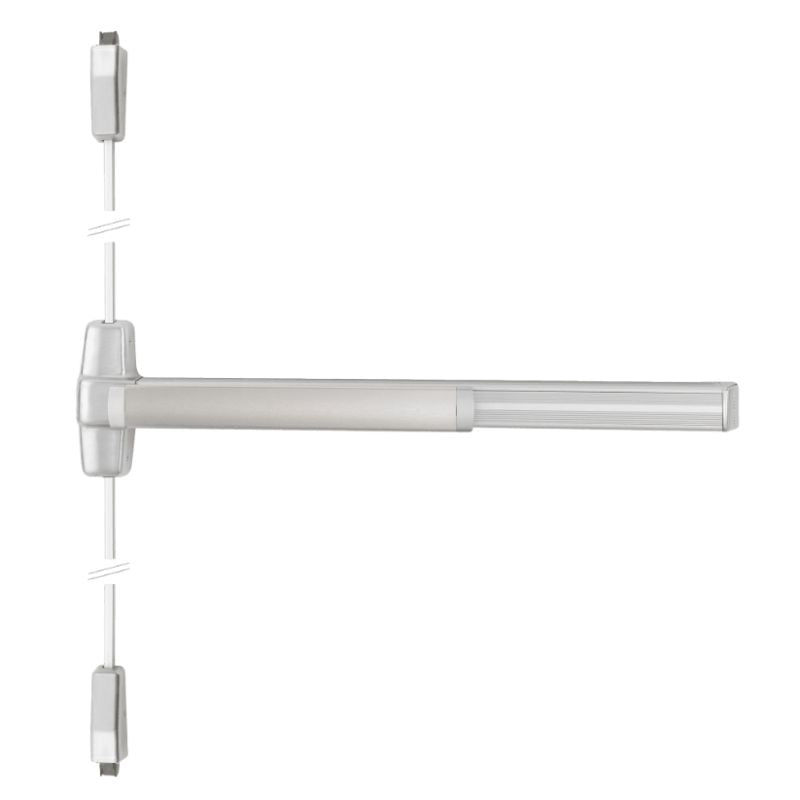

Von Duprin RXQEL9927EO-3-626 Surface Vertical Rod Exit Device, 36" For 28-36" Door Width, 84" Door Height, Exit Only, Less trim, Quiet Electric Latch Retraction, Request to Exit Switch, Less Dogging, Non Handed, US26D Satin Chrome Finish

This Von Duprin exit device, model RXQEL9927EO-3-626, is designed for surface vertical rod installation and features a quiet electric latch retraction mechanism. Measuring 36 inches in length, it is suitable for door widths between 28 and 36 inches and can accommodate door heights up to 84 inches. The device is for exit-only use and does not include a trim. Additionally, it is equipped with a request-to-exit switch and does not have a dogging function. It is non-handed and comes in a US26D satin chrome finish.

99 Series Rim Exit Device

Heavy-duty exit devices with grooved mechanism cases for all types of single and double doors.

• Device functions: Device ships EO/DT/NL. Field selectable. For TP, K or L remove NL drive screw from device.
• Device lengths: 3' 2'4' to 3' (711mm to 914 mm) Door size 4' 2'10" to 4' (864 mm to 1219 mm) Door size
• Device centerline from finished floor: 39 13/16" (1011 mm) 39 11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2 3/4" x2 3/8" (203mm x 70mm x 60mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57mm x 57mm)
• Projection: Pushbar neutral – 3 13/16" (97 mm) Pushbar depressed – 3 1/16" (78 mm)
• Latch bolt: Deadlocking, 3/4" (19mm) throw
• Fasteners & sex bolts (SNB): Includes screw pack for 1 3/4" (44mm) and 2 1/4" (57mm) thick metal or wood doors. Optional 425 SNB available, see page 9 for quantities.

Multi-Function Device: Trims below decide the function of the device;
990EO Exit Only Plate
990NL Night Latch Trim - Key retracts latch bolt
990DT Dummy Pull Trim - Pull when dogged
990TP Thumbpiece Trim - Key locks and unlocks
990TP-BE Thumbpiece, Blank Escutcheon - Always operable, no cylinder
996EO Exit Only Plate
996L Lever Trim - Key locks and unlocks
996L-NL Night Latch Trim - Key retracts latch bolt
996L-DT Lever Dummy Trim - Pull when dogged
996L-BE Lever, Blank Escutcheon - Always operable, no cylinder
