Description

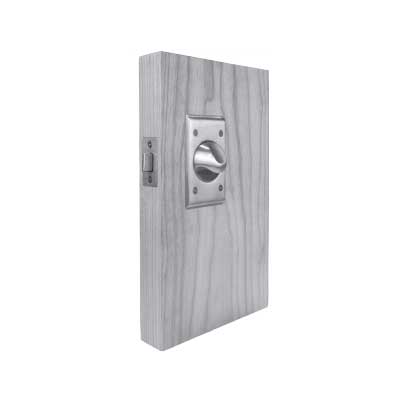

ABH 622 A-C US32D AB 2 3/4 Backset Angle Knob Both push and pull sides have asylum trim Asylum Cylindrical Latch 2 3/4 Back Set Cylindrical latch application passage function Satin Stainless Steel Finish
“C”– Angled Asylum Trim – This sleek design models the look of a thumb turn- Cylindrical latch application - Asylum passage function
- 2 3/4"Backset
- 1-3/4" standard door thickness (specify if different)
- Meets ADA requirements
- The trim is mounted using four thru-bolts for maximum stability
- One continuous spring provides smoother operation and extended life for the unit
- Non-handed for installation and stocking ease
- Trim can be mounted vertically or horizontally (with handles pointing toward the hinge edge of the door)
- Handles can be mounted up or down by simply rotating the trim 180 °
- UL Listed in the U.S.A. and Canada for use on door fire rated 90 minutes or less, up to 4'0" x 8'0"
- 1/2" Latch Bolt Throw
- Average weight per unit = 5 lbs
- Patent# 6,196,599 & Additional Patent Pending
