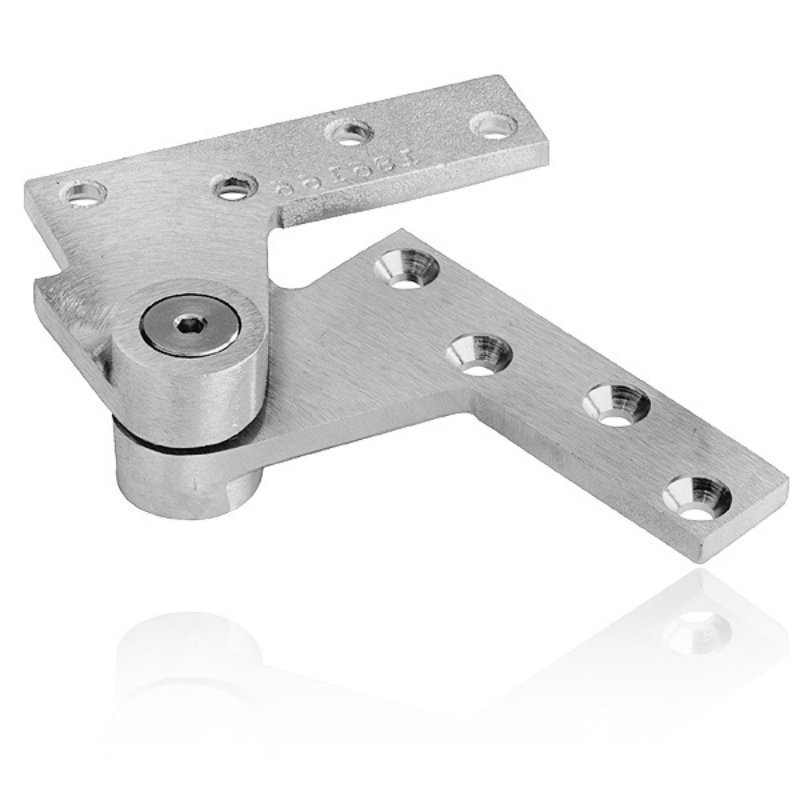

Rixson 180 x 1-1/2OS, Top Pivot 1 1/2 Inch Offset Hung, Non Handed
The Rixson 180-1-1/2OS Top Pivot is a heavy-duty, full-mortise solution specifically engineered for doors requiring a specialized 1-1/2" offset to clear decorative cladding or trim. This non-handed top pivot features a high-grade, non-ferrous brass or bronze base material, making it an ideal choice for high-traffic commercial environments where corrosion resistance is essential. Designed for seamless compatibility with Rixson 117, 147, and 27 series offset pivot sets and floor closers, it utilizes an oil-impregnated sintered bronze bushing to provide smooth, maintenance-free operation for doors weighing up to 600 lbs. Whether you are performing a lead-lined door installation or a standard commercial retrofit, the 180-1-1/2OS offers the precision architectural clearance and rugged durability required for long-term reliability.
Application
- Full Mortise
- 1-1/2" Offset
-
Non-handed
Description/Features
- Oil-impregnated sintered bronze bushing
- Standard top pivot for most 1-1/2" offset pivot sets and floor closer
- Non-ferrous base metal
- 1-1/2" offset (measured from centerline of pivot to face of door)
- Furnished with wood and machine screws
