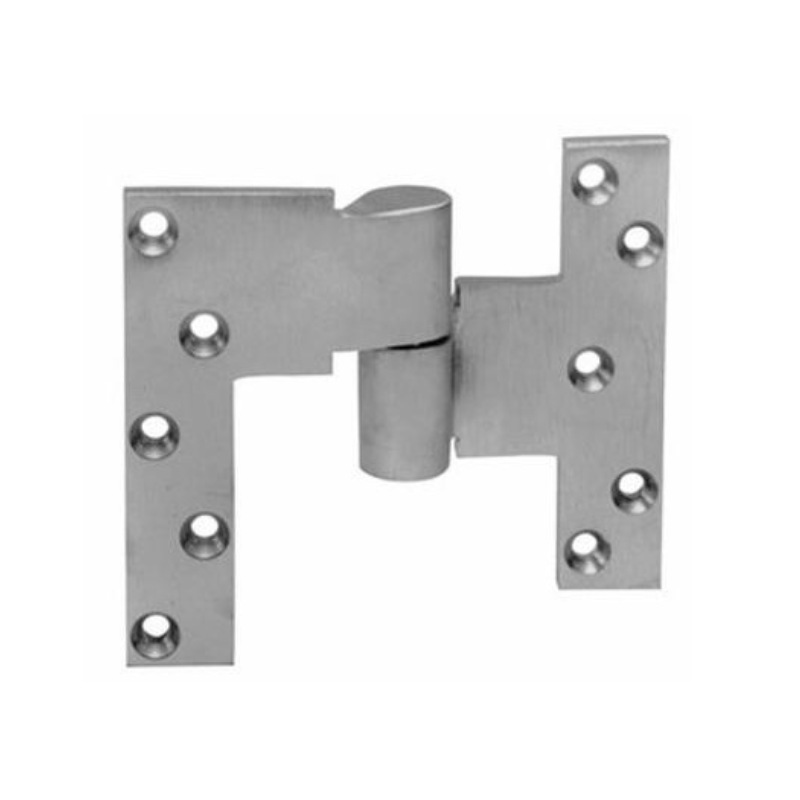

Rixson M19 x 1-1/2, Intermediate 1-1/2 Inch Offset Pivot, Full Mortise, Handed, Satin Chrome Finish

The Rixson M19 x 1-1/2 Inch Offset Pivot is a professional-grade, full mortise intermediate pivot engineered to maintain precise door alignment and prevent sagging in high-traffic commercial environments. Specifically designed with a 1-1/2" (38mm) offset to clear specialized door trim or cladding, this non-ferrous brass or bronze pivot is the ideal companion for floor closers and bottom pivots. While not load-bearing, it is essential for tall doors; use one pivot for doors between 60" and 90", adding an additional pivot for every 30" of height thereafter. This handed (LH/RH) hardware meets BHMA/ANSI C07321 standards, ensuring long-term durability and structural integrity for doors up to 3'6" wide

• Not load-bearing

• Maintains door alignment

• Aids in installing floor closers and bottom pivots

• 1-1/2" (38mm) offset

• Non-ferrous base metal

• Doors 60" (1524mm) to 90" (2286mm) in height should use one intermediate pivot. Each additional 30" (762mm) warrants another intermediate pivot

• Furnished with wood and machine screws
