Sargent 12-8813-J-ETL Fire Rated Rim Exit Device Panic Bar, Key Locks Or Unlocks Outside Lever, 37"-42" Bar, ETL Trim

  • SKU: 128813JETLUS32DLHR
$2,140.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Core Options: KD - Sargent Fixed Core LA Keyway Keyed Different with 2 Change Keys per Lock
Sargent Handing: LHR Left Hand Reverse
Handing Guide:
handing chart image

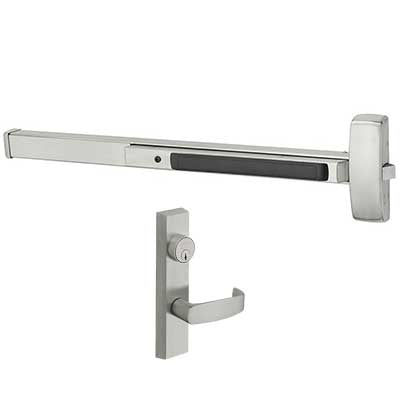

The Sargent 12-8813-J-ETL Rim Exit Device Panic Bar is Fire Rated, a 37"-42" bar, and features a ETL Trim., is in Grade 1.

This is an exit device panic bar ideal for use in all institutions, office spaces, and healthcare facilities. It is grade 1 commercial door hardware.

A key locks/unlocks the outside lever control. And the Sargent 8813 has "ETL" trim.

Features: Sargent 12-8813 Rim Exit Device Panic Bar

  • Single point rim latching device
  • Single door & double door applications with mullions
  • Quiet operation and solid security
  • Devices are ANSI A156.3 - Grade 1
  • UL Fire and Panic listed
Manufacturer Sargent
SKU 12-8813J
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Classroom
Device Length 42"
Hand Non-Handed
Dogging Options Less Dogging
Includes Trim Yes
Trim Type ETL
Includes Cylinder(s) Optional
Minimum Stile Size 4 3/4"
Door Material Metal or Wood
Door Width 37" to 42"
Door Thickness 1 3/4" - 2 1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices



Product Cut Sheet

Panic Handing Chart
