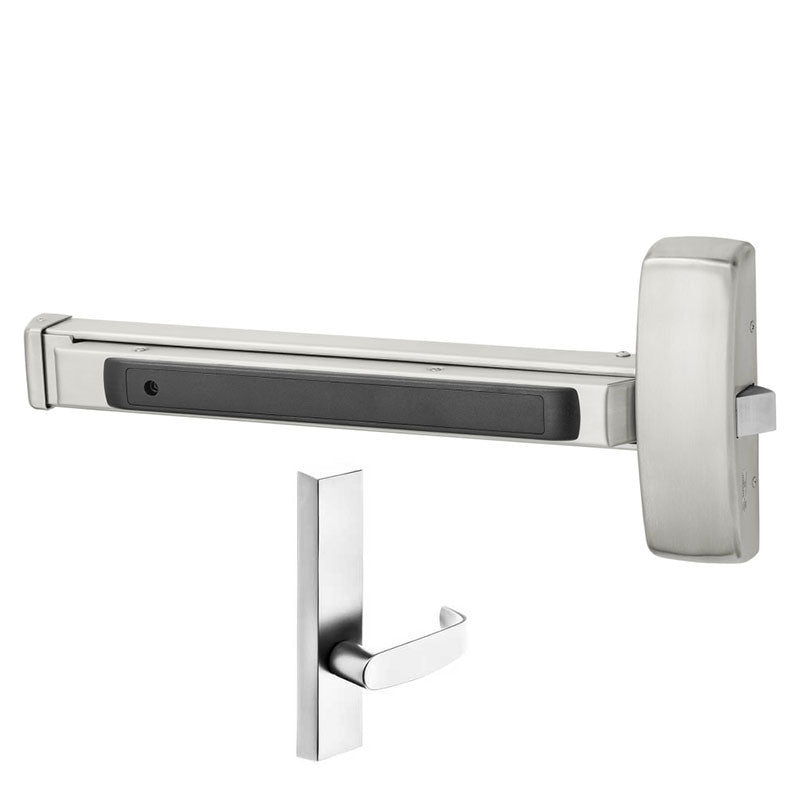

Sargent 12-8815-E-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 24"-32" Bar

Technical Specs

Product Specs

The Sargent 12-8815-E is a 24"-32" rim exit device that is an always-operable passage lever. It features a non-keyed passage function and an "ETL" trim.

The 12-8815 is ideal for use in all institutions, office spaces, and healthcare facilities. Sargent exit devices are quality-made commercial door hardware.

The Sargent 8815 sets the industry standard for durability and reliability. It is part of Sargent's 8800/8815 series of exit devices, designed for standard-width stile applications on wood and metal doors.

Features: Sargent 12-8815 Rim Exit Device

• Single point rim latching device
• Single door double door applications with mullions
• Quiet operation and solid security
• Devices are ANSI A156.3 - Grade 1
• UL Fire and Panic listed

• Door Types: Wood or Metal 1 3/4"(44mm)
• Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix.
• Door Widths: E Rail - 24" to 32" (61cm to 81cm)
• No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm)
• No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm)
• No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm)
• No cutting required for 48" door
