Where can I use this exit device?
The Sargent 12-8815-J-ETL Rim Exit Device is designed for commercial use in various settings, including:
- Institutions
- Office spaces
- Healthcare facilities

$1,711.03
Sargent 12-8815-J-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 37"-42" Bar - US3 Bright Brass (605) / LHR Left Hand Reverse

$1,711.03
Sargent 12-8815-J-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 37"-42" Bar - US10B Oxidized Dull Bronze (613) / RHR Right Hand Reverse

$1,645.10
Sargent 12-8815-G-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 43"-48" Bar - US32D Satin Stainless Steel (630) / LHR Left Hand Reverse

$1,711.03
Sargent 12-8815-G-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 43"-48" Bar - US3 Bright Brass (605) / RHR Right Hand Reverse
★★★★★
What customers say about Quality Door & Hardware:
"Good communication and parts were shipped out quick. Thanks again!"

$1,711.03
Sargent 12-8815-G-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 43"-48" Bar - US10B Oxidized Dull Bronze (613) / LHR Left Hand Reverse

$1,645.10
Sargent 12-8815-F-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 33"-36" Bar - US32D Satin Stainless Steel (630) / RHR Right Hand Reverse

$1,711.03
Sargent 12-8815-F-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 33"-36" Bar - US10B Oxidized Dull Bronze (613) / LHR Left Hand Reverse
★★★★★
What customers say about Quality Door & Hardware:
"The rubber threshold product work perfectly to fill the gap where we had taken out a wall. Very sturdy and durable ..."

$1,711.03
Sargent 12-8815-F-ETL Fire Rated Rim Exit Device Panic Bar, Passage Function, ETL Trim, 33"-36" Bar - US3 Bright Brass (605) / LHR Left Hand Reverse

$1,533.42
Sargent 8815-G-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 43"-48" Bar - US32D Satin Stainless Steel (630) / RHR Right Hand Reverse

$1,599.35
Sargent 8815-G-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 43"-48" Bar - US10B Oxidized Dull Bronze (613) / LHR Left Hand Reverse
★★★★★
What customers say about Quality Door & Hardware:
"Great to work with and always have everything I'm looking for available. My go to door and hardware supplier!"

$1,599.35
Sargent 8815-G-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 43"-48" Bar - US3 Bright Brass (605) / LHR Left Hand Reverse

$1,533.42
Sargent 8815-F-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 33"-36" Bar - US32D Satin Stainless Steel (630) / LHR Left Hand Reverse

$1,599.35
Sargent 8815-F-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 33"-36" Bar - US3 Bright Brass (605) / LHR Left Hand Reverse
★★★★★
What customers say about Quality Door & Hardware:
"My order was delivered just a couple of days after placed ... Excellent customer service."

$1,599.35
Sargent 8815-F-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 33"-36" Bar - US10B Oxidized Dull Bronze (613) / RHR Right Hand Reverse

$1,533.42
Sargent 8815-J-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 37"-42" Bar - US32D Satin Stainless Steel (630) / LHR Left Hand Reverse

$1,599.35
Sargent 8815-J-ETL Rim Exit Device Panic Bar, Passage Function, ETL Trim, 37"-42" Bar - US10B Oxidized Dull Bronze (613) / LHR Left Hand Reverse
★★★★★
What customers say about Quality Door & Hardware:
"Quality Doors & Hardware has a great selection and wonderful customer service! ... Highly recommend!"
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Passage |
Device Length | 42" |
Hand | LHR or RHR |
Dogging Options | Less Dogging |
Includes Trim | Yes |
Trim Type | ETL |
Includes Cylinder(s) | No |
Cylinder Type | Non-Keyed |
Minimum Stile Size | 4 3/4" |
Door Material | Metal or Wood |
Door Width | 37" to 42" |
Door Thickness | 1 3/4" - 2 1/4" |
Fire Rated | Yes |
Reversible | Yes |
Product Type | Rim Exit Devices |
Product Specs
Manufacturer | Sargent |
SKU | 12-8815J |
Grade | Grade 1 |
Installation | Commercial |
Origin | USA |
Unit of Measure | Each |
UL Listing Type | UL10C & UL305 |
ANSI Number | ANSI/BHMA A156.3 |
Restrictions | None |
BAA Qualified | Yes |
Limited Warranty | 5 Years |
Fire Rated | 3 Hours {A} |
Burglar Rated | No |
ADA Compliance | No |

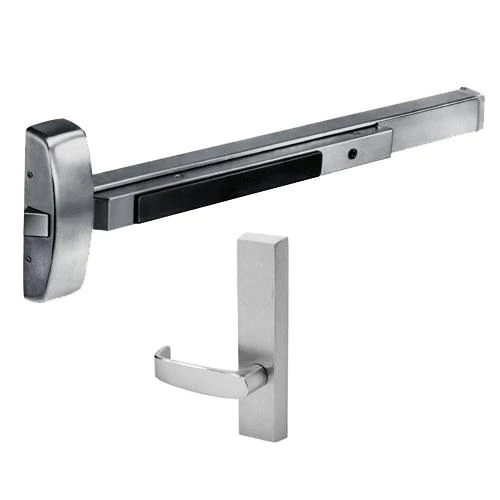

The Sargent 12-8815-J is a 37"- 42" rim exit device that is an always-operable passage lever. It features a non-keyed passage function and "ETL" trim, in Grade 1.
The 12-8815 is ideal for use in all institutions, office spaces, and healthcare facilities. Sargent exit devices are quality-made commercial door hardware.
The Sargent 8815 sets the industry standard for durability and reliability. It is part of Sargent's 8800/8815 series of exit devices, designed for standard-width stile applications on wood and metal doors.
Features: Sargent 12-8815 Rim Exit Device
- Single point rim latching device
- Single door double door applications with mullions
- Quiet operation and solid security
- Devices are ANSI A156.3 - Grade 1
- UL Fire and Panic listed
Technical Measurements: Sargent 12-8815 Rim Exit Device
- Door Types: Wood or Metal 1 3/4"(44mm)
- Thick Door; Over 1 3/4" specify thickness and order as a 31- prefix.
- Door Widths: E Rail - 24" to 32" (61cm to 81cm)
- No cutting required for 32" door; F Rail - 33" to 36" (84cm to 91cm)
- No cutting required for 36" door; J Rail - 37" to 42" (94cm to 107cm)
- No cutting required for 42" door; G Rail - 43" to 48" (110cm to 122cm)
- No cutting required for 48" door
