Technical Specs
| Physical Appearance | Wide Stile Pushpad |
| Device Type | Rim |
| Mechanical Function | Device to Accept Electrified Trim |
| Device Length | 36" |
| Hand | LHR OR RHR |
| Dogging Options | Less Dogging |
| Includes Trim | YES |
| Trim Type | ETL |
| Includes Cylinder(s) | No |
| Cylinder Type | Non-Keyed |
| Minimum Stile Size | 4-3/4" |
| Door Material | Metal or Wood |
| Door Width | 33" to 36" |
| Door Thickness | 1-3/4" - 2-1/4" |
| Fire Rated | Yes |
| Reversible | Yes |
| Product Type | Rim Exit Devices |
Product Specs
| Manufacturer | Sargent |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | USA |
| Unit of Measure | Each |
| UL Listing Type | UL10C & UL305 |
| ANSI Number | ANSI/BHMA A156.3 |
| Restrictions | None |
| BAA Qualified | Yes |
| Limited Warranty | 5 Years |
| Fire Rated | 3 Hours {A} |
| Burglar Rated | No |
| ADA Compliance | No |

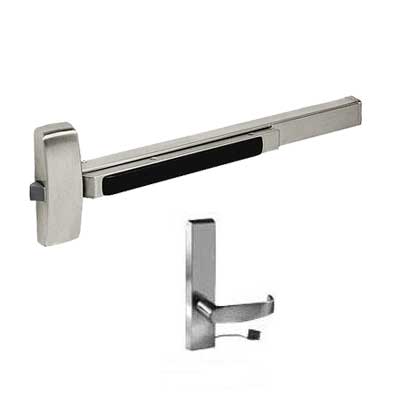

Sargent 12-8873-F-ETL-24V is a Fire Rated Rim Exit Device that has a 33"-36" bar, an Electrified ET Trim with an L lever, and Fail Safe Function- Power Off Unlocks Lever.
73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)
The Sargent 12-8873-ETL Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Or US10B Finishes.
★★★★★
What customers say about Quality Door & Hardware:
"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."
What door widths can this exit device accommodate?
The device is compatible with doors measuring 33 to 36 inches in width.
