Sargent 12-8873-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Safe, Non-Keyed, 43"-48" Bar

SKU: 128873GETL24VUS32DLHR

All SARGENT Products

Sargent 12-8873-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Safe, Non-Keyed, 43"-48" Bar

SKU: 128873GETL24VUS32DLHR

$2,600.00/ea

In Stock

In Stock

Choose your options

Finish - US32D Satin Stainless Steel (630)

Handing

Quantity:

Buy Complete Door Hardware Set

Finish - US32D Satin Stainless Steel (630)

US32D Satin Stainless Steel (630)
US10B Oxidized Dull Bronze (613)

Sargent 12-8873-G-ETL-24V Fire Rated ...

Finish:

Handing:

Variant

Quantity

–

+

$2,600.00

Sargent Cylinders - Multiple Keyways & Finishes

Finish - US32D Satin Stainless Steel (630)

US32D Satin Stainless Steel (630)
US10B Oxidized Dull Bronze (613)
US3 Bright Brass (605)
BSP Black Suede Powder Coat

Sargent Cylinders - Multiple Keyways ...

Keyway:

Finish:

Variant

Quantity

–

+

$175.00

Total $2775.00

Technical Specs

Physical Appearance	Wide Stile Pushpad
Device Type	Rim
Mechanical Function	Device to Accept Electrified Trim
Device Length	48"
Hand	LHR OR RHR
Dogging Options	Less Dogging
Includes Trim	YES
Trim Type	ETL
Includes Cylinder(s)	No
Cylinder Type	Non-Keyed
Minimum Stile Size	4-3/4"
Door Material	Metal or Wood
Door Width	43" to 48"
Door Thickness	1-3/4" - 2-1/4"
Fire Rated	Yes
Reversible	Yes
Product Type	Rim Exit Devices

Product Specs

Manufacturer	Sargent
Grade	Grade 1
Installation	Commercial
Origin	USA
Unit of Measure	Each
UL Listing Type	UL10C & UL305
ANSI Number	ANSI/BHMA A156.3
Restrictions	None
BAA Qualified	Yes
Limited Warranty	5 Years
Fire Rated	3 Hours {A}
Burglar Rated	No
ADA Compliance	No

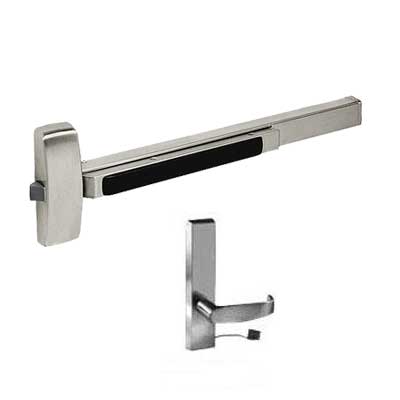

Sargent 12-8873-G-ETL-24V is a Fire Rated Rim Exit Device that has a 43"-48" bar, an Electrified ET Trim with an L lever, and Fail Safe Function- Power Off Unlocks Lever.

73 Electrified ET Trim - Fail Safe
Power Off, Unlocks Lever (No Cylinder)

The Sargent 12-8873-ETL Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Or US10B Finishes.

★★★★★

What customers say about Quality Door & Hardware:

"Very happy to know they were able to get me my special order locks so quickly. I will definitely use them for my larger projects."

What is the door width compatibility for this exit device?

The device is compatible with doors measuring between 43 and 48 inches in width.
