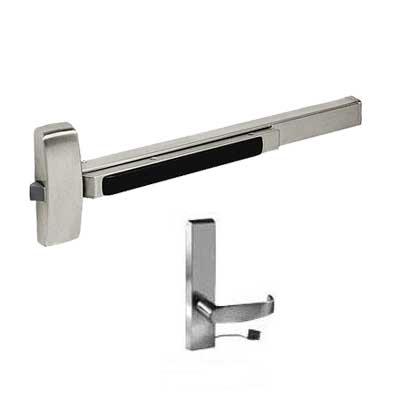

Sargent 12-8874-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Secure, 43"-48" Bar

  • SKU: 128874GETL24VUS32DLHR
Sargent 12-8874-ETL
Sargent 12-8874-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Secure, 43"-48" Bar
Sargent 12-8874-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Secure, 43"-48" Bar
Sargent 12-8874-ETL
Sargent 12-8874-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Secure, 43"-48" Bar
Sargent 12-8874-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Secure, 43"-48" Bar
All SARGENT Products

Sargent 12-8874-G-ETL-24V Fire Rated Rim Exit Device, Electrified ETL Trim, 24V, Fail Secure, 43"-48" Bar

  • SKU: 128874GETL24VUS32DLHR
$2,425.00/ea
Available (1‑2 Weeks)
1-2 Weeks Lead Time
Finish: US32D Satin Stainless Steel (630)
Handing: LHR - Left Hand Reverse
Sargent 12-8874-G-ETL-24V is Fire Rated Rim Exit Device, is Electrified ETL Trim, is 24V, is Fail Secure - Power Off, Locks Lever, is Non-Keyed, and has a 43"-48" Bar.

74 Electrified ET Trim - Fail Secure
Power Off, Locks Lever (No Cylinder)

Sargent 12-8874-G-ETL-24V Is a Wide Stile Rim Panic Bar With Electrified Trim Is Handed LHR Or RHR, US32D Or US10B Finishes, in Grade 1.
Grade Grade 1
Installation Commercial
Origin USA
Unit of Measure Each
UL Listing Type UL10C & UL305
ANSI Number ANSI/BHMA A156.3
Restrictions None
BAA Qualified Yes
Limited Warranty 5 Years
Fire Rated 3 Hours {A}
Burglar Rated No
ADA Compliance No
Physical Appearance Wide Stile Pushpad
Device Type Rim
Mechanical Function Device to Accept Electrified Trim
Device Length 48"
Hand Non-Handed
Dogging Options Less Dogging
Includes Trim Yes
Trim Type ETL
Includes Cylinder(s) No
Cylinder Type Non-Keyed
Minimum Stile Size 4-3/4"
Door Material Metal or Wood
Door Width 43" to 48"
Door Thickness 1-3/4" - 2-1/4"
Fire Rated Yes
Reversible Yes
Product Type Rim Exit Devices
Product Cut Sheet

Panic Handing Chart
