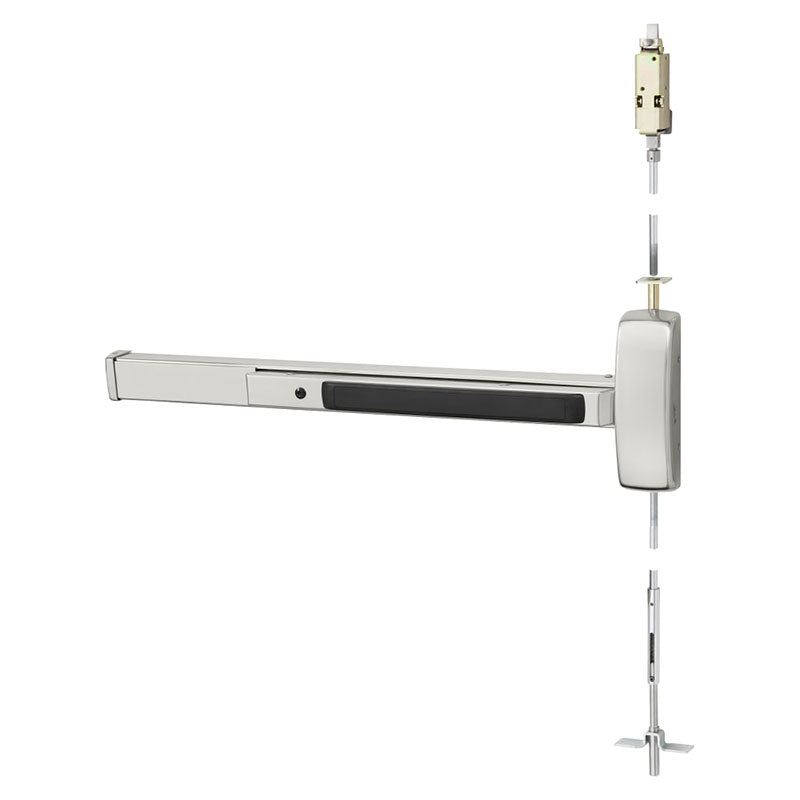

The Sargent MD8610F is a 36" Concealed Vertical Rod Exit Device, with No Trim - Exit Only, and is a Multi-function device, with Hex Dogging. This device is an F bar for 33"-36" wide doors, with door heights of 84" (7'ft) to 96" (8'ft), and is used with 1 3/4" thick Metal Doors. We offer these devices in US32D Satin Stainless Steel, US10BE Dark Oxidized Satin Bronze equivalent, US10B Oxidized Dull Bronze, BSP Black Suede Powder Coat, and WSP White Suede Powder Coat finish.
Multi-Function Device: Trims below decide the function of the device;
706-4 - Key unlocks Trim, Trim retracts latch/Trim relocks when key is removed (accepts a Sargent #41 Cylinder)
710-4 - Dummy Trim: No outside operation (No Cylinder)
713-4 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715-4 - Passage Only (No cylinder)
773-4 - Fail-Safe: Power Off, Unlocks Lever (No Cylinder)
774-4 - Fail Secure: Power Off, Locks Lever (No Cylinder)
Features
- Designed for standard width stile applications on metal doors
- Concealed rods for security and aesthetics
- Single and double door applications
- Specify NB- for less bottom rod
- Devices are ANSI/BHMA A156.3 - Grade 1
- UL305 (Panic) listed only
