Description

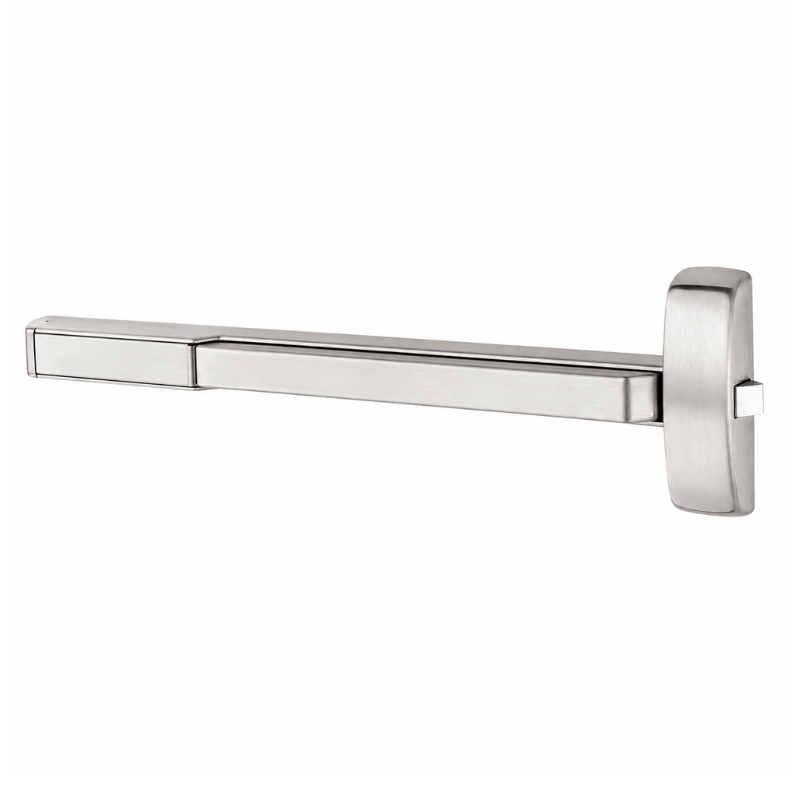

Sargent PE8888-G-US32D Wide Stile Rim Exit Device, Multi-Function, Exit Only, 42.5"-48" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1, 630 Satin Stainless Steel Finish
The Sargent PE8888-G is a grade 1 exit device with a wide stile pushpad and a field reversible design. It features a multi-function rim exit device, exit only function, and hex key dogging. This device is designed for doors measuring between 42.5"-48" wide.
Multi-Function Device: Trims below decide the function of the device;
704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)
Rail Sizes
Product Specs
Manufacturer | Sargent |
SKU | PE8888G |
Grade | Grade 1 |
Installation | Commercial |
Origin | — |
Unit of Measure | Each |
UL Listing Type | UL 305 |
Technical Specs
Physical Appearance | Wide Stile Pushpad |
Device Type | Rim |
Mechanical Function | Multi-Function |
Device Length | 48" |
Dogging Options | Hex Key Dogging |
Includes Trim | No |
Trim Type | Less Trim |
Door Material | Wood, Metal, Aluminum |
Door Width | 48" |
Door Thickness | 1-3/4" |
Product Type | Rim Exit Devices |
