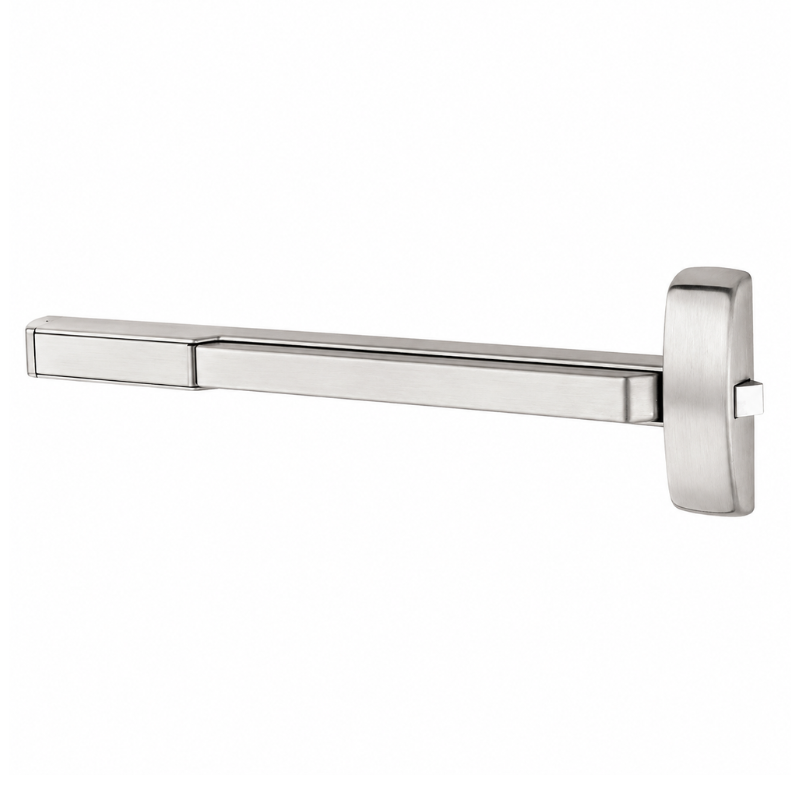

Sargent PE8888-J Wide Stile Rim Exit Device, Multi-Function, Exit Only, 36.5"-42" Inch Door, Hex Key Dogging, Reversible Non-Handed, Grade 1
The Sargent PE8888-J is a grade 1 exit device with a wide stile pushpad and a field reversible design. It features a multi-function rim exit device, exit only function, and hex key dogging. This device is designed for doors measuring between 36.5"-42" wide.
Multi-Function Device: Trims below decide the function of the device;
704 - Night Latch Function, Key Retracts Latch (accepts a Sargent #34 Cylinder)
710 - Dummy Trim: No outside operation (No Cylinder)
713 - Classroom: Key Outside Unlocks/locks Trim (accepts a Sargent #41 Cylinder)
715 - Passage Only (No cylinder)
773 - Fail Safe (No Cylinder)
774 - Fail Secure (No Cylinder)
775 - Fail Safe (accepts a Sargent #34 Cylinder)
776 - Fail Secure (accepts a Sargent #34 Cylinder)
Rail Sizes
| Stock Size |
Door Opening Widths |
Remarks |
| E |
24" to 32" (61 cm to 81 cm) |
No cutting required for 32" (81 cm) door |
| F |
32.5" to 36" (84 cm to 91 cm) |
No cutting required for 36" (91 cm) door |
| J |
36.5" to 42" (94 cm to 107 cm) |
No cutting required for 42" (107 cm) door |
| G |
42.5" to 48" (110 cm to 122 cm) |
No cutting required for 48" (122 cm) door |
