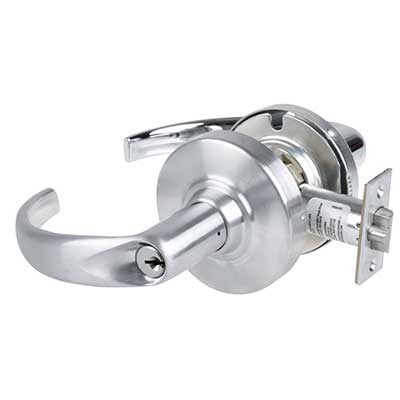

Schlage ND80PD-EL-SPA-626 Electrified Storeroom Lock, Fail Safe, Sparta Lever, Satin Chrome

  • SKU: ND80PDELSPA626

Schlage ND80PD-EL-SPA-626 Electrified Storeroom Lock, Fail Safe, Sparta Lever, Satin Chrome

  • SKU: ND80PDELSPA626
Sale price$1,121.00/ea
In Stock
In Stock
Keyway: Schlage "C" Keyway
Choose Your Product Options:
Choose Region *
Painting Format *
Image Resolution *
Frame
Portrait Canvas Size (With Frame) *
Add HQ Digital Image
Mint as NFT

Technical Specs

Function 80EL-Fail Safe
Lever/Knob Design SPA- Sparta
Rose/Escutcheon Design 3-7/16 In. Diameter
Cylinder Type Conventional Cylinder
Num Pins 6
Keying Keyed Different
Number of Keys 2
Door Thickness 1-3/4" to 2"
Latch Number 14-047
Latch Type Guarded Latch
Latch Backset Dim 2-3/4"
Lock Face Size 2-1/4" X 1-1/8"
Strike Number 10-025
Strike Type ASA
Strike Height 4-7/8"
Strike Width 1-1/4"
Dust Box None
Screws Combination
Power Hard Wired
Operating Voltage 12VDC/24VDC
Amp Draw 0.23
Switch Type None
Product Type Electric Cylindrical Lock

Product Specs

Vendor Allegion
Manufacturer Schlage
SKU ND80PDEL SPA 626
Grade Grade 1
Installation Commercial
Origin Mexico
Application Storeroom Lever
Base Material Brass or Bronze
BAA Qualified Yes
Limited Warranty 1 Year
Finish 626/US26D
Finish Description Satin Chrome



The Schlage ND80PD-EL-SPA-626 is an Electrified Cylindrical Storeroom Lock, that is Fail Safe, is 12-24V DC, with an Sparta Lever, is available in Schlage C Keyway or S123 Keyway, is Keyed Different, comes with 2 Keys, has a 2-3/4" Backset, a 4-7/8" Strike, is Grade 1 and comes in 626 Satin Chrome Finish.

Schlage ND80EL ND80EU Function Chart

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

The electrified ND is ideally used in:

  • High-traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features
All mechanical features plus:

  • Auto-detecting 12-24VDC input
  • Selectable EL/EU operation
  • Low 0.23 amp max current draw that allows multiple locks on a single power supply
  • Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
  • Modular Request to Exit (RX) that can be added at any time
  • Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
  • Six electrified functions for application flexibility
