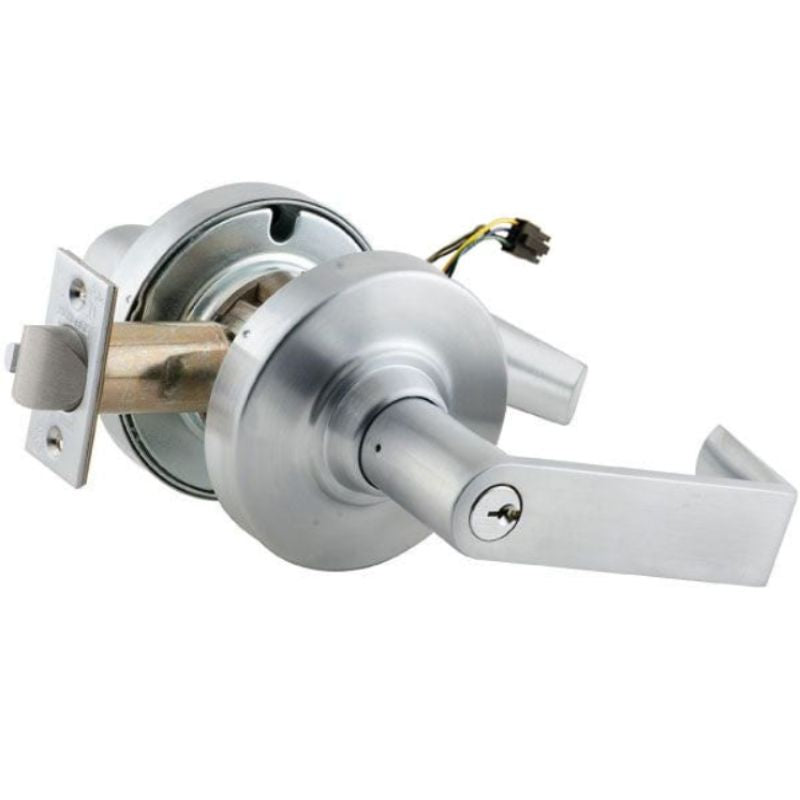

Schlage ND80PD-EU-RHO-RX Electrified Cylindrical Lock, Storeroom Function, Sch "C" Keyway

  • SKU: ND80PDEURHO626RX

Schlage ND80PD-EU-RHO-RX Electrified Cylindrical Lock, Storeroom Function, Sch "C" Keyway

  • SKU: ND80PDEURHO626RX
Sale price$1,162.00/ea
In Stock
In Stock
Finish: US26D-626 Satin Chrome

Buy Complete Door Hardware Set

? What's this?
Door hardware to Complete Your Set
Schlage ND80PD-EU-RHO-RX Electrified ...
Quantity
+
Sale priceFrom $1,162.00
LCN 4040XP-RW/PA-TBSRT Super Smoothee...
Quantity
+
Sale priceFrom $606.00
Ives 5BB1 4.5X4.5 Ball Bearing Hinge
Quantity
+
Sale priceFrom $85.00
Total

Schlage ND80PDEU-RHO-626 Electrified Cylindrical Lock, Storeroom Function, 12/24 VDC, Fail Secure, 2-3/4‟ Backset, Request to Exit, Rhodes Lever, Sch "C" Keyway Keyed Random, 2 Keys, Grade 1

Schlage ND80PD-EU-RHO-RX Electrified Cylindrical Lock, features a 6 pin design, keyed differently for added security. With a storeroom function and 12/24 VDC capabilities, this lock is designed for easy access control and fail secure settings. It also boasts a spacious backset of 2-3/4 inches and a Rhodes lever, making it a Grade 1 lock suitable for commercial or industrial use.

ND Series Electrified Lever Locks

Electrified Schlage cylindrical locks offer superior energy efficiency and flexibility in wired electrified applications.

Wired electrified locks complement the mechanical offering and are typically incorporated into a wired access control system or used independently with a remote access switch.

The electrified ND is ideally used in:

  • High-traffic areas, where line power ensures continuous operation
  • New construction, where electrified door prep, hinges, and wiring can easily be incorporated into the building

Key Features
All mechanical features plus:

  • Auto-detecting 12-24VDC input
  • Selectable EL/EU operation
  • Low 0.23 amp max current draw that allows multiple locks on a single power supply
  • Low 0.010 amp holding current that eliminates "hot levers" in electrically locked applications
  • Modular Request to Exit (RX) that can be added at any time
  • Inventory friendly–one lock supports 12-24V, EL, or EU, with or without RX
  • Six electrified functions for application flexibility
    Manufacturer Schlage
    SKU ND80PDEU RHO RX
    Grade Grade 1
    Installation Commercial
    Origin Mexico
    Unit of Measure
    Base Material Brass or Bronze
    BAA Qualified Yes
    Limited Warranty 1 Year
    Function 80EU-Fail Secure
    Lever/Knob Design RHO-Rhodes
    Rose/Escutcheon Design 3-7/16 In. Diameter
    Cylinder Type Conventional Cylinder
    Num Pins 6
    Keying Keyed Different
    Number of Keys 2
    Door Thickness 1-3/4" to 2"
    Latch Number 14-047
    Latch Type Guarded Latch
    Latch Backset Dim 2-3/4"
    Lock Face Size 2-1/4" X 1-1/8"
    Strike Number 10-025
    Strike Type ASA
    Strike Height 4-7/8"
    Strike Width 1-1/4"
    Dust Box None
    Screws Combination
    Power Hard Wired
    Operating Voltage 12VDC/24VDC
    Amp Draw 0.23
    Switch Type Request to Exit
    Product Type Electric Cylindrical Lock
