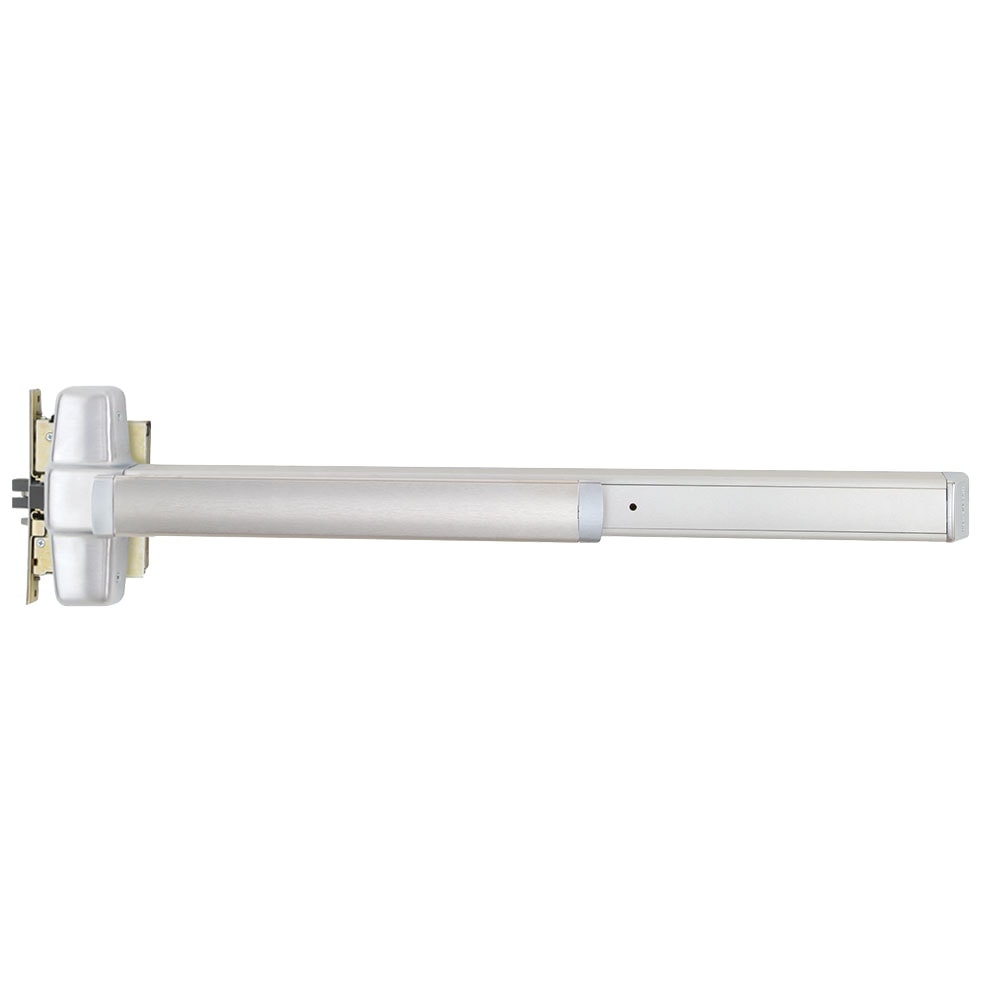

Von Duprin 9875EO Mortise Exit Device, Wide Stile Pushpad, 36 In For 28-36" Door Width, Exit Only, Less Trim, Hex Key Dogging, Grade 1, Non Handed
The Von Duprin 9875EO Mortise Exit Device is a high-quality, exit solution designed for wide stile doors. It features a pushpad for easy operation and is Grade 1 rated, ensuring durability and reliability. This device is non-handed and includes trim and dogging options.
The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
Fire exit mortise lock devices with a smooth mechanism case.
The 9875 Series is for all types of single or double doors and is UL listed for panic exit hardware. Devices are ANSI A156.3 – 2008 Grade 1. Fits stock hollow metal doors with 86 cutouts and door stiles as narrow as 4-3/4" (121mm).
Device Functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
Device Lengths:
3' – 2' 4" to 3' (711 mm to 914 mm) door size
4' – 2' 10" to 4' (864 mm to 1219 mm) door size
Device centerline from the finished door:
39-13/16" (1011 mm)
39-11/16" (1008 mm) with mullion
Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
