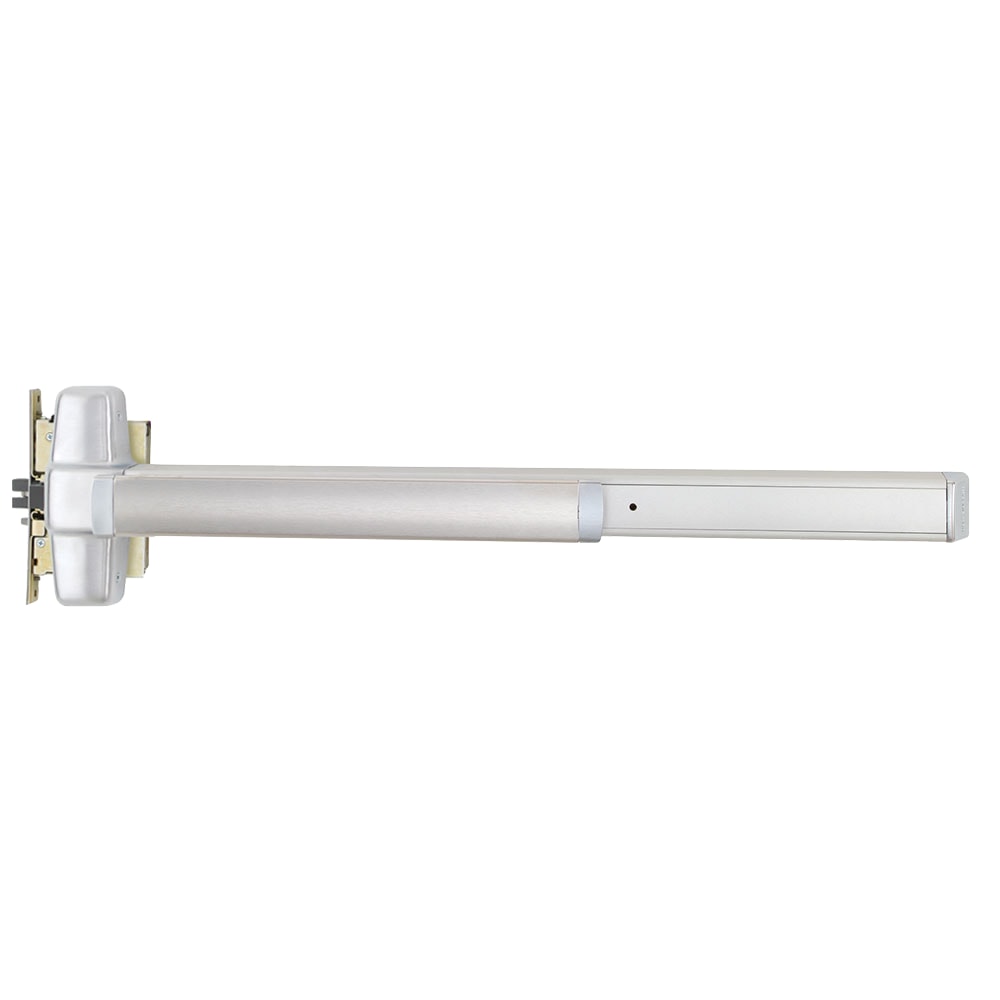

Von Duprin 9875EO-F-3 Fire Rated Mortise Exit Device, Wide Stile Pushpad, 36 In For 28-36" Door Width, Exit Only, Less Trim, Less Dogging, Grade 1, Non Handed

98 Series Mortise Exit Device

Fire exit mortise lock devices with a smooth mechanism case.

• Device Functions: The device ships EO/DT/NL. Field selectable. For TP, K or L remove the NL drive screw from the device.
• Device Lengths:
  • 3' – 2' 4" to 3' (711 mm to 914 mm) door size
  • 4' – 2' 10" to 4' (864 mm to 1219 mm) door size
• Device centerline from the finished door:
  • 39-13/16" (1011 mm)
  • 39-11/16" (1008 mm) with mullion
• Center case dimensions: 8" x 2-3/4" x 2-3/8" (203 mm x 70 mm x 60 mm)
• Mechanism case dimensions: 2 1/4" x 2 1/4" (57 mm x 57 mm)
• Projection: Pushbar Neutral – 3-13/16" (97 mm); Pushbar depressed – 3-1/16" (78 mm)
• Fasteners & sex bolts (SNB): Includes screw pack for 1-3/4" (44 mm) and 2-1/4" (57 mm) thick metal or wood doors.
