Technical Specs
| Device Type | Trim |
| Mechanical Function | Passage |
| Trim Type | Lever |
| Trim Design | Lever with Escutcheon |
| Includes Cylinder(s) | Non-Keyed |
| Reversible | Yes |
| Product Type | Exit Device Trim |
Product Specs
| Manufacturer | Von Duprin |
| SKU | 996L-BE-17-M-626 |
| Grade | Grade 1 |
| Installation | Commercial |
| Origin | — |
| Unit of Measure | Each |
| Application | 98/99 Mortise Devices |
| Base Material | Brass or Bronze |
| Design A | 17 Lever |

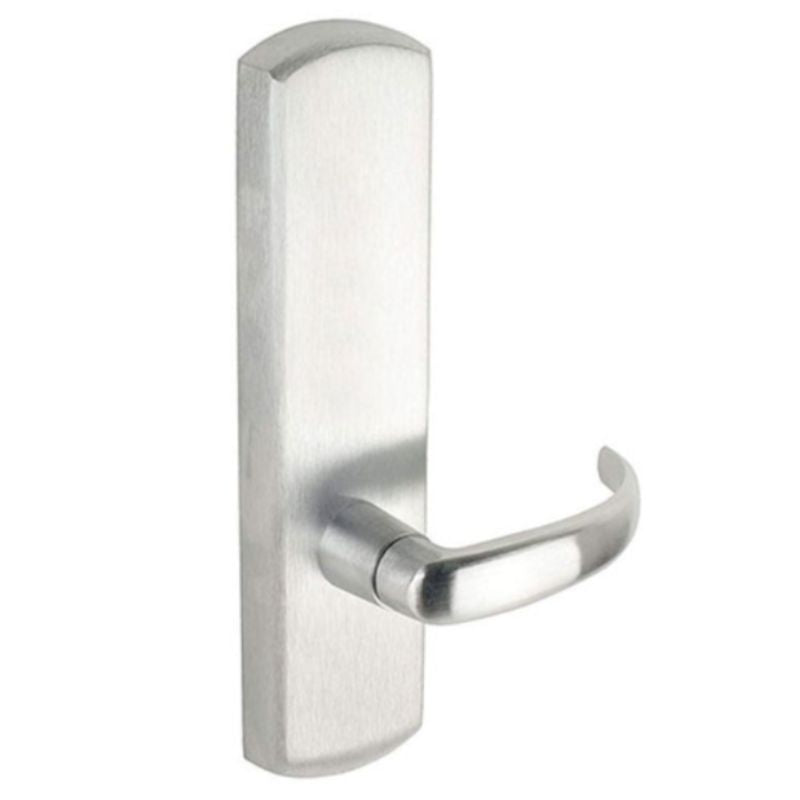

Von Duprin 996L-BE-17-M-626 Exit Device Lever Trim, Passage Function, 17 Lever Style with Blank Escutcheon, For 98/99 Mortise Exit Devices, Grade 1, US26D Satin Chrome Finish
The Von Duprin 996L-BE-17-M-626 Passage Exit Device Lever Trim boasts a sleek Satin Chrome finish and is designed for use with Grade 1, 98/99 Mortise Exit Devices. The 17 Lever Style comes with a Blank Escutcheon, making it a versatile choice for any setting.
- Passage Function: used where doors do not need to lock
- ANSI function: 08
- Escutcheon plate size: 2 3⁄4" x 10 3⁄4" x 27⁄32" (70 x 273 x 21mm)
- Projection: 2 7⁄8" (73mm)
- Handing: Handed/reversible
