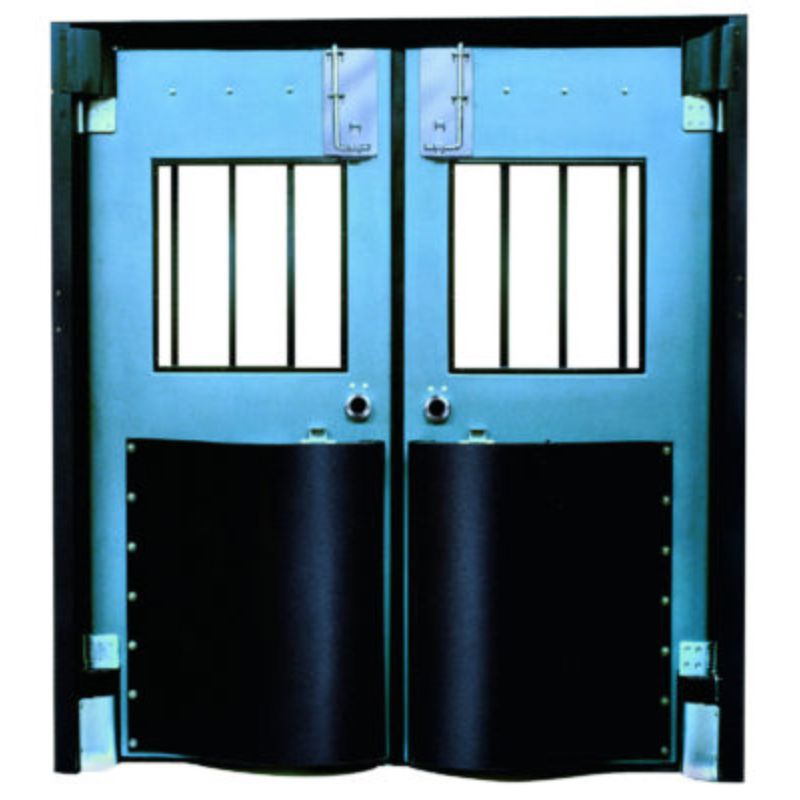

Chase Durulite 200 Postal Door
Chase Doors, founded in 1932, is recognized as a global leader in the manufacture of high-quality, reliable doors for a variety of industries. Specializing in customized solutions, Chase Doors offers a diverse range of products including impact traffic doors, service doors, and strip curtains. Their commitment to innovation and customer satisfaction has solidified their reputation as a trusted provider for businesses seeking durable and efficient door systems. Chase Doors continues to lead the market by integrating the latest technology and design standards into their products, ensuring that they meet the evolving needs of their clients worldwide.
The Durulite Model 200 Postal Series door is engineered to fulfill the strict security standards of the United States Postal Service and adheres to all RE-5 security guidelines.
How To Order
Click Here to Download
- Download the Quote Request Form: Click to download our quote request form provided in PDF format.
- Complete the Form: Read the PDF carefully and fill out the form with the required details to ensure accurate processing of your request.
- Submit the Form: On the Request a Quote page, fill out the required information, upload the completed PDF if needed, and submit your request.
Door Data
Durulite Series 200 Product Flyer
Durulite Postal Security 200 Drawing
Durulite 200 Postal Security 90x90 Parts Breakdown
Durulite Industrial, Standard, Security Door Install Inst.
Door Stop Installation Instructions
Weldplates Installation Instructions 90 Degrees
Weldplates Installation Instructions 90 Degrees - ME-200
Canebolt Hole Position on Header
Construction
Door Panel: The door features a 1/4" thick outer shell made from Cross-Linked High Density Polyethylene (X-LINK HDPE), which is five times stronger than ABS. This material ensures maximum durability and impact resistance, maintaining its properties down to -40°F. The overall thickness of the panel is 1-7/8”.
Insulated Core: The core of the door panel is filled with CFC-Free urethane foam, which is foamed in place to bond permanently with the inner surface of the door panel. This foam prevents breakdown upon impact and provides excellent insulation (R Factor of 10.83) along with sound attenuation properties.
Internal Reinforcement: The door features an upper V-Cam Hinge System and a lower hinge pillow block construction with a UHMW sleeve and a solid cast aluminum adapter for enhanced durability.
High Density Polyethylene Spring Bumpers: These 38” high bumpers made of High Density Polyethylene (HDPE) protect the door panel from impacts. They include a 4” teardrop projection that absorbs impact energy and returns to its original position post-compression.
Full Perimeter Gasketing: The door includes durable gasketing applied without metal strips or fasteners, simplifying field replacement. Frame-mounted header seals are also provided to seal the top of the door.
Upper Hinge System: This system features a solid cast aluminum Upper Hinge Post and a zinc-plated ductile iron V-Cam with a UHMW sleeve, ensuring smooth and reliable operation. The roller assembly includes a permanently lubricated needle bearing for longevity and minimal maintenance.
Bottom Hinge: Constructed from solid cast aluminum, the lower hinge post operates within a heavy-duty pillow block with a UHMW sleeve for dependable performance. This hinge can be fitted with an optional spring assist for applications requiring resistance to high drafts.
Additional USPS Security Features:
- Upper and Lower Cane Bolts
- 2” Lock Sleeve
- Double glazed, 1/8” thick recessed polycarbonate windows with three internal steel security bars spaced on 7” centers
- Tamper-resistant fasteners ensure added security and peace of mind.
